YAMAHA SPARE PARTS









YAMAHA SPARE PARTS



PART NO. DESCRIPTION
KW1-M3291-00X DRIVE ROLLER UNIT
KW1-M1191-00X DRIVE ROLLER UNIT

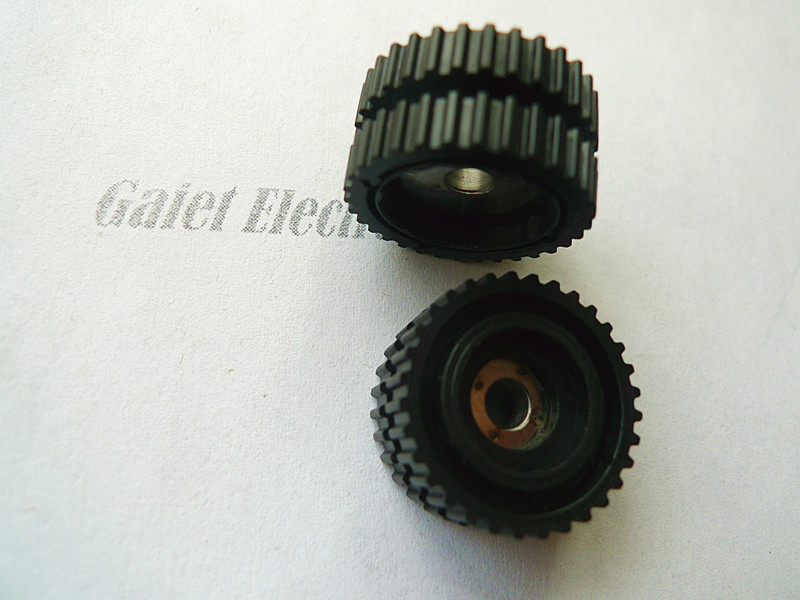

KW1-M229L-00X IDLE ROLLER ASSY (CL12mm)
KW1-M119L-00X IDLE ROLLER ASSY (CL8mm)
K87-M1199-10X DRIVE GEAR ASSY (FV D/E TYPE)
K87-M2199-00X DRIVE GEAR ASSY

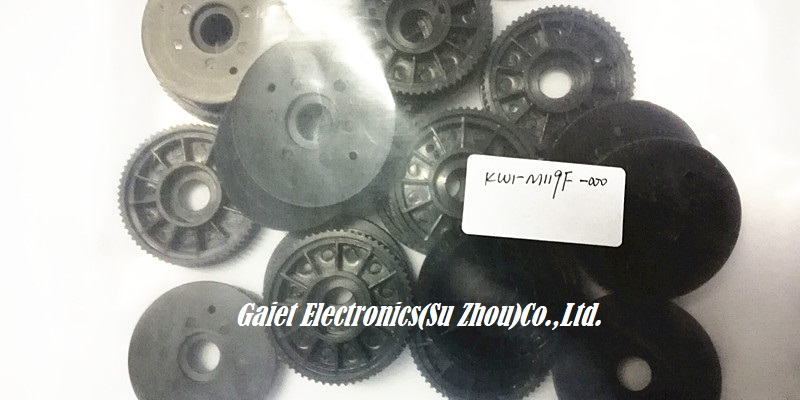

KW1-M119F-00X DRIVE ROLLER ASSY
KW1-M456N-00 REEL COVER ASSY/CL24

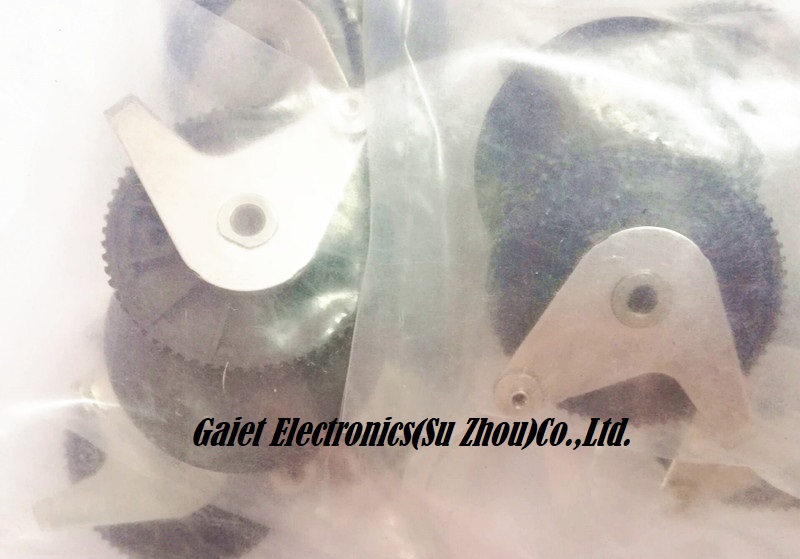

KW1-M1192-00X IDLE ROLLER ASSY (CL8mm)

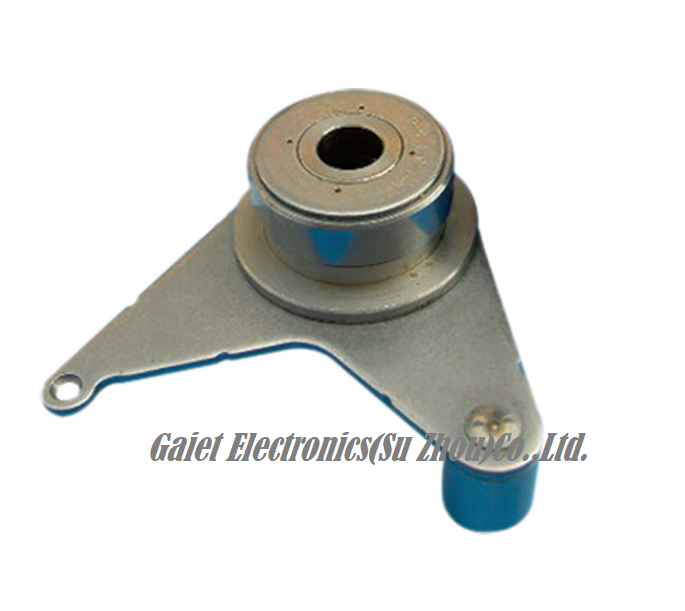

KW1-M2292-00X INDENTATION LVR ASSY

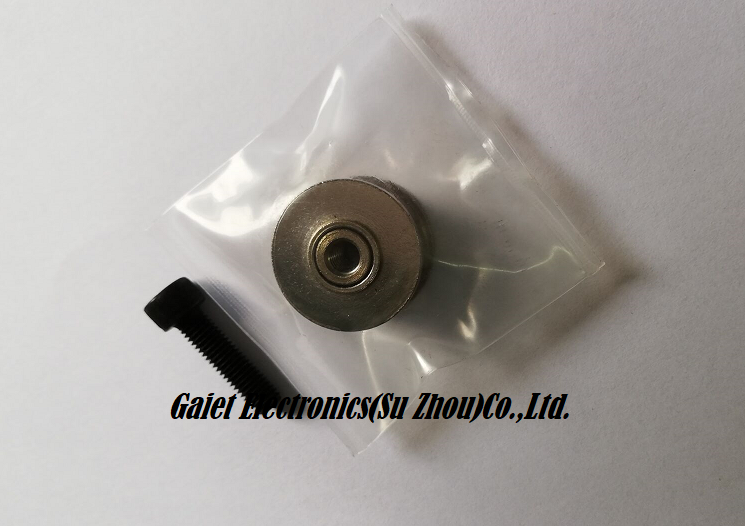

KV7-M9140-A0X PULLEY

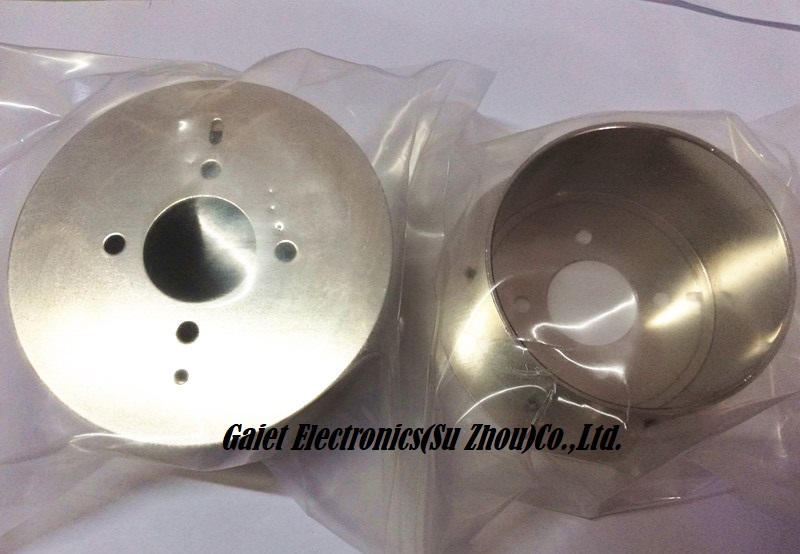

KW1-M659U-00   REEL PLATE
KJK-M1191-00X DRIVE ROLLER UNIT
KV8-M71U0-01X BASE OF NOZZLE

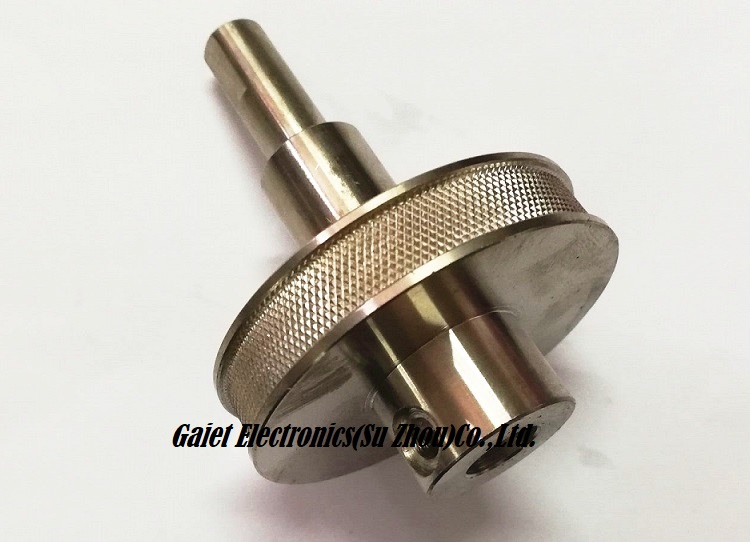

KV7-M9142-00X WHEEL
K87-M1120-10X SPROCKET ASSY
KHJ-MC545-00 LEVER,TAPE GUIDE F
KHJ-MC16U-00 TAIL COVER ASSY
KHJ-MC26U-00 TAIL COVER ASSY
KHJ-MC56U-00 TAIL COVER ASSY

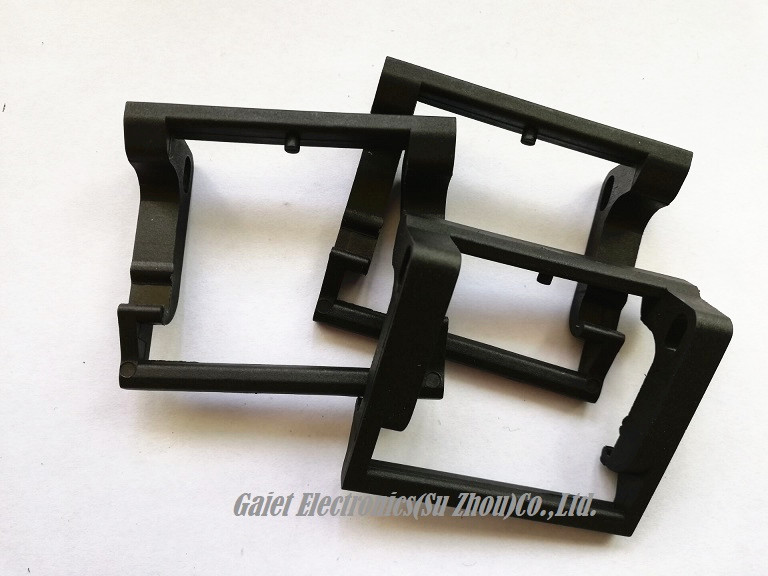

KHJ-MC645-00 LEVER,TAPE GUIDE F
KHJ-MC745-00 LEVER,TAPE GUIDE F
KHJ-MC141-02 SMT Tape Guide Assy
KHJ-MC244-00 LEVER,TAPE GUIDE R

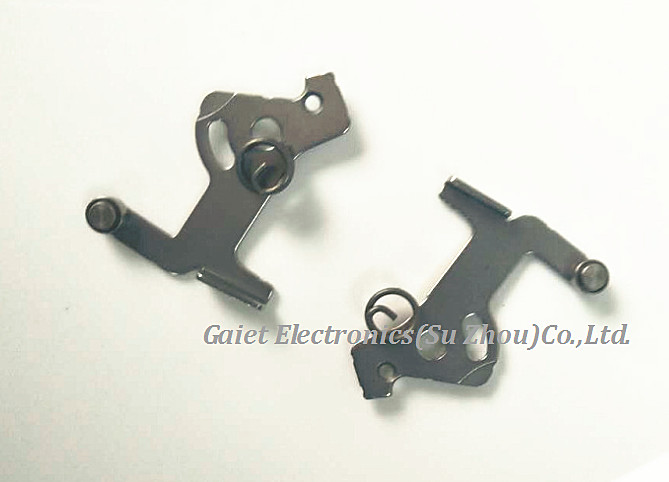

KJK-M117A-01 Insurance buckle
KHJ-MC144-00 LEVER

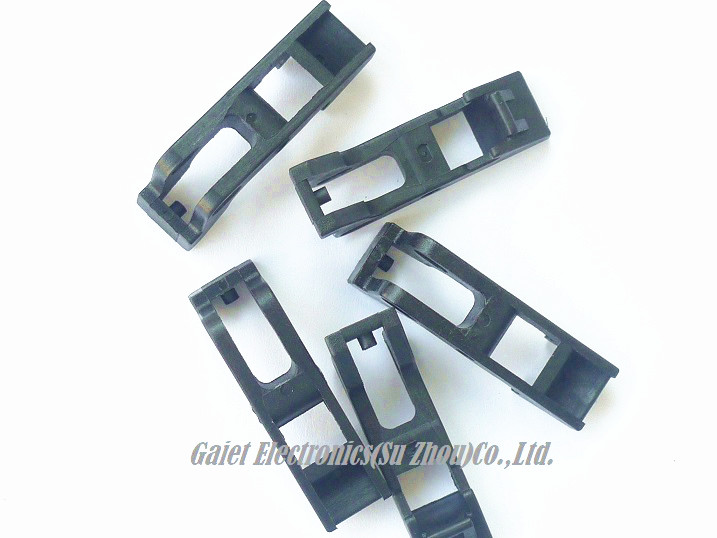

KHJ-MC145-00 LEVER

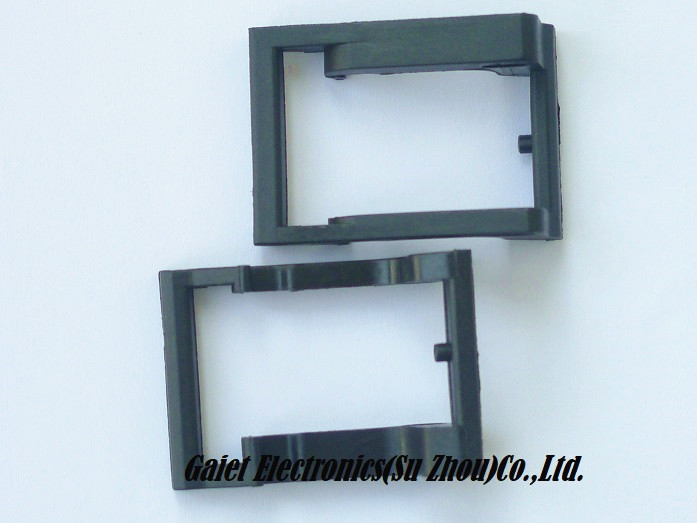

KHJ-MC445-00 LEVER

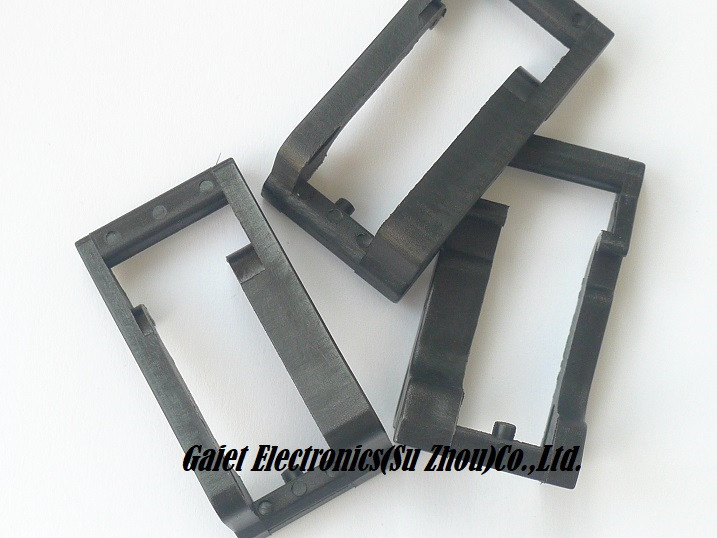

KHJ-MC245-00 LEVER

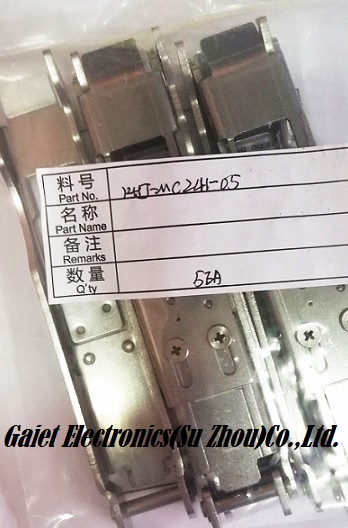

KHJ-MC241-05 LEVER
KHJ-MC24J-05 TAPE GUIDE ASSY
KHJ-MC104-01 GUIDE

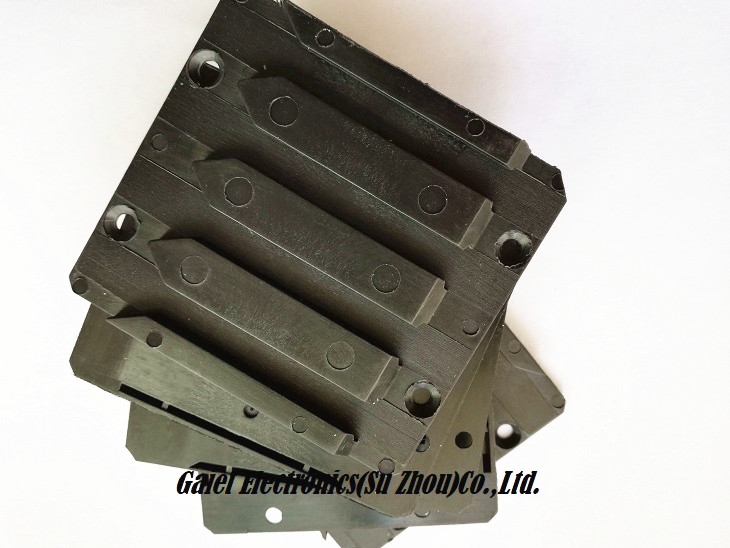

KHJ-MD111-01 GUIDE
KLJ-MC145-00 8MM LEVER,TAPE GUIDE F

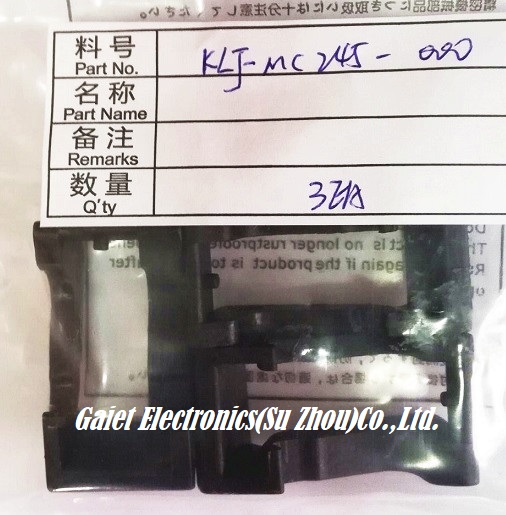

KLJ-MC245-00 12/16MM LEVER,TAPE GUIDE F

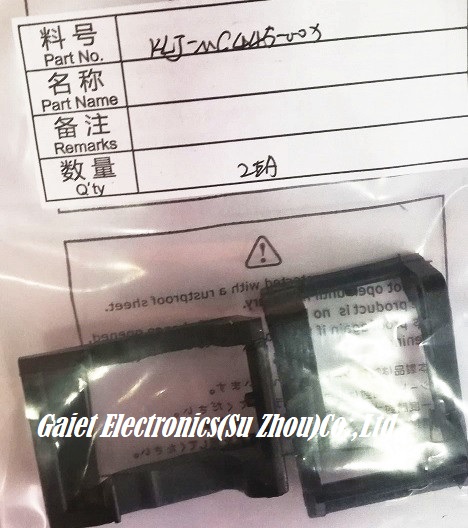

KLJ-MC445-00 24MM LEVER,TAPE GUIDE F
KHJ-MC44W-S0 HOOK TAPE GUIDE KIT
KV8-M71R2-01X BLOCK STOPPER
KW1-M2240-00X SMT Tape Guide Plate Unit (CL12/CL16)

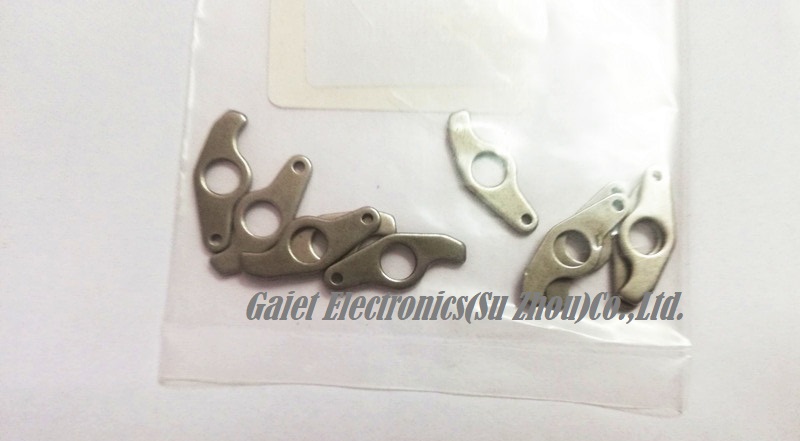

K87-M111H-20X  Pawl Back stopper
KW1-M112A-00X Pawl Back stopper
KW1-M1140-00X SMT Tape Guide Plate Unit
KW1-M1132-00X SMT Tape Guide Plate Unit
KW1-M1540-00X SMT Tape Guide Plate Unit
KHJ-MC941-00 TAPE GUIDE ASSY
KW1-M3240-00X TAPE GUIDE ASSY
KW1-M4540-010 TAPE GUIDE ASSY
KLJ-MC141-00X  TAPE GUIDE ASSY
KHY-M221A-00 DUCT Cover
KHY-M221A-00X TAPE GUIDE
KLJ-MC181-00 ZS Y8MM Handle

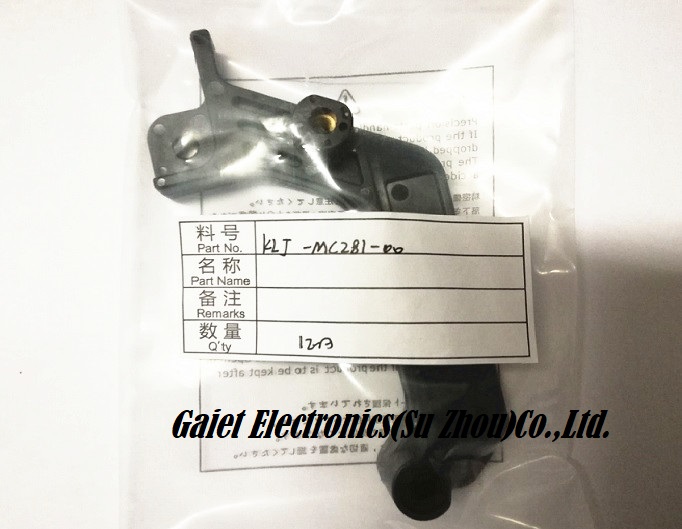

KLJ-MC281-00  Handle
KHJ-MC181-000  Handle
KW1-M125L-100 HOLD ARM BLACK
KHJ-MC16Y-00X Feeder Wastage
KLJ-MC163-00 ZS 8MM Cover
KLJ-MC463-00 24MM Cover

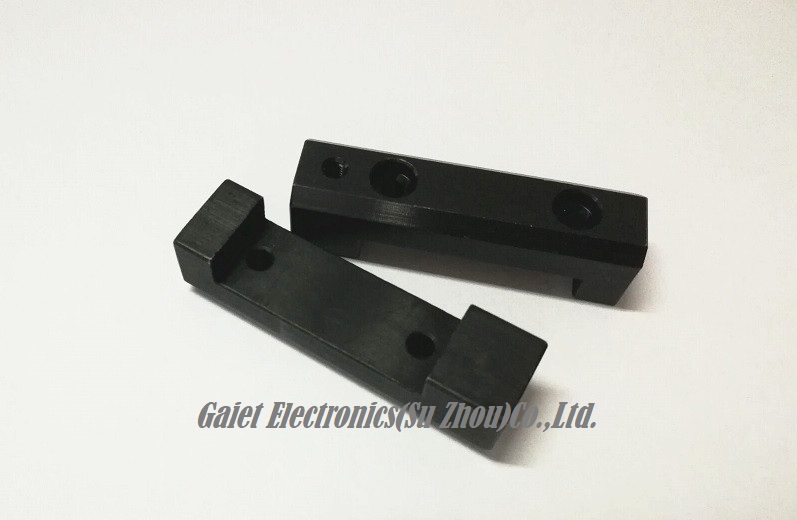

KU0-M9172-00 Fixed Block
K87-M1112-00X Fixed Block

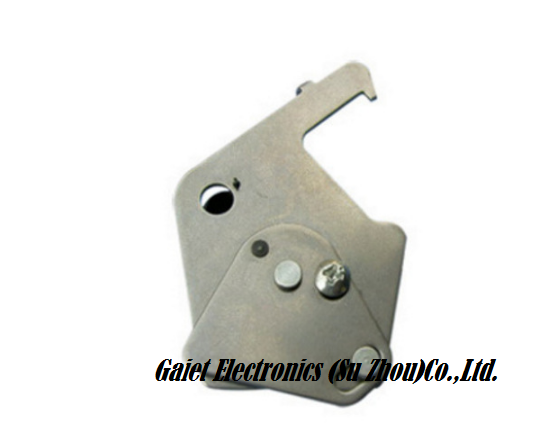

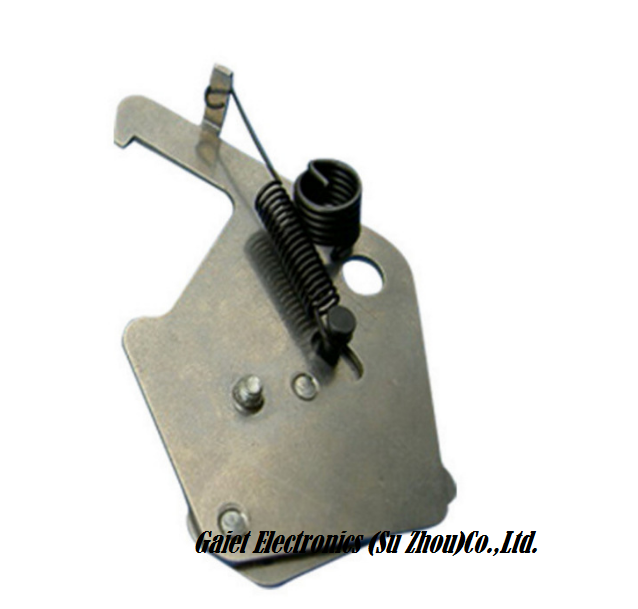

KW1-M454A-00X LOCK LEVER ASSY
KGB-M7102-00X PLATE HEAD
KJK-M1131-000 HOOK
K87-M2131-001 HOOK
KW1-M324A-000 HAND LEVER ASSY (CL16mm)

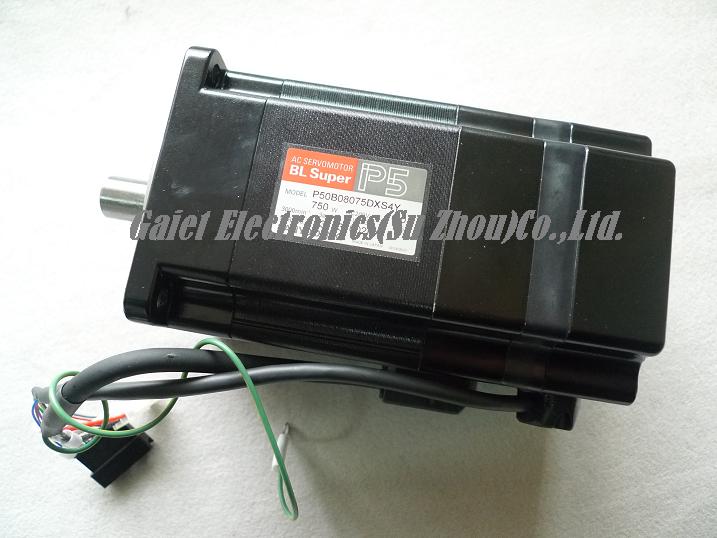

90K56-8717EX YAMAHA MOTOR
90K56-8A174Y YAMAHA MOTOR

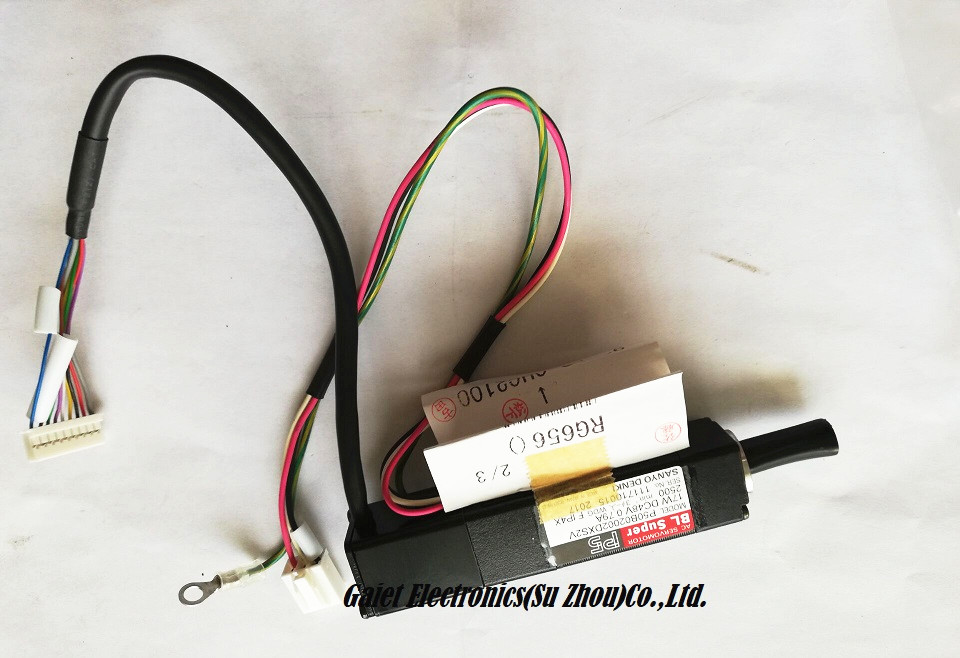

90K2B-OH2204 YAMAHA MOTOR

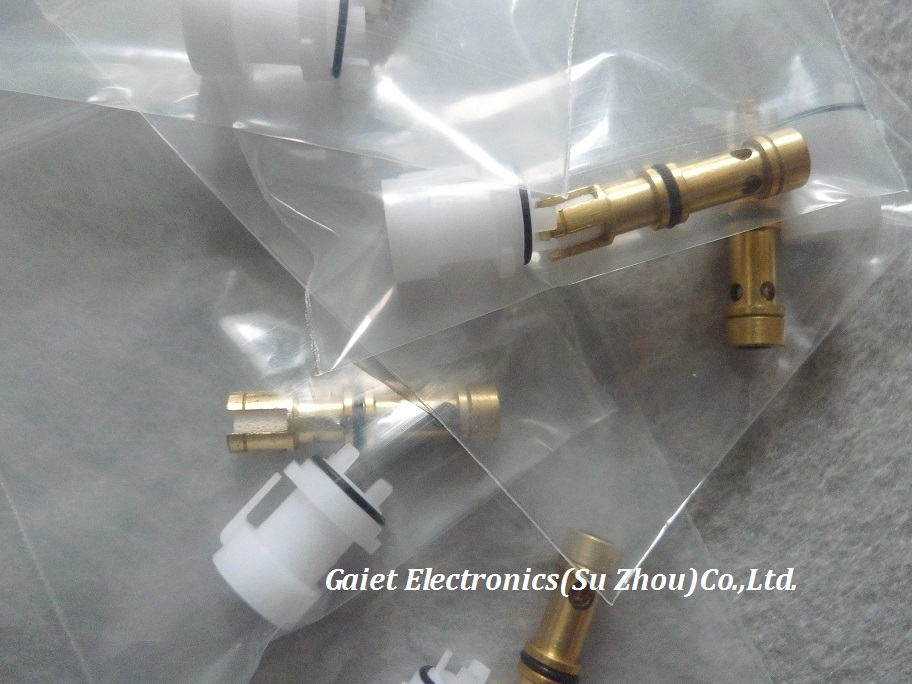

KHY-M7158-00 Bit Retrofit Kit

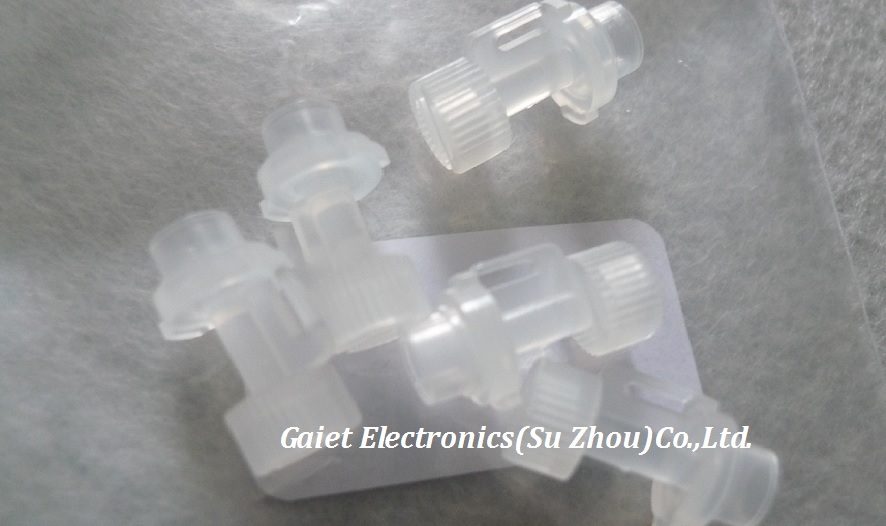

KHY-M7156-00X Bit Cap
KV8-M7104-000 Piston Assy
KM1-M7104-A0X Piston, Assy
KW1-M2250-000  Hand lever assy
KW1-M114A-00X lever assy
KW1-M1150-00X Hand lever assy

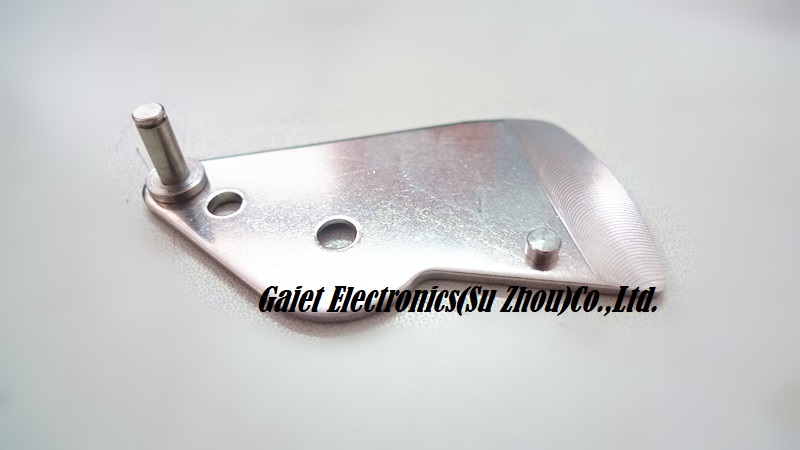

KW1-M1132-00X CLAMP LEVER UNIT
KW1-M1177-00X Main ARM Assy
KW1-M2277-00X MAIN ARM(CL12mm)
KW1-M224D-00X SUB ARM(CL12mm)
KW1-M451G-000 LEVER ASSY
KW1-M4577-000 MAIN ARM
KHJ-MC16E-00 SPRING
KV8-M8883-00X Nozzle Cleaning Wire
KW1-M229K-00X SMT Spring
KW1-M321E-00X  SMT Spring
KW1-M221E-00X  SMT Spring

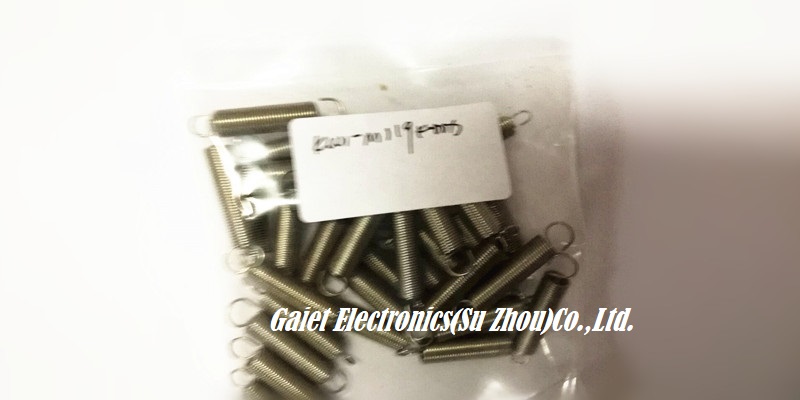

KW1-M119K-00X SMT Spring
KW1-M119P-00X SMT Parts Spring
KW1-M111A-00X SMT Parts Spring
KW1-M111E-00X SMT Parts Spring
KL3-M1348-10X Original Gas Spring
KGS-M1348-00X Gas Spring
KHY-M3T22-00X Cutter Buffer
KM1-M7138-00X Belt

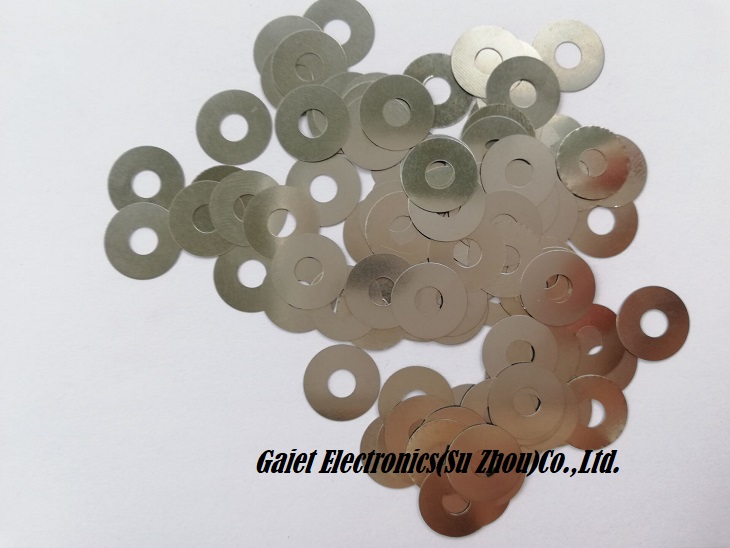

KW1-M11BS-50X SHIM

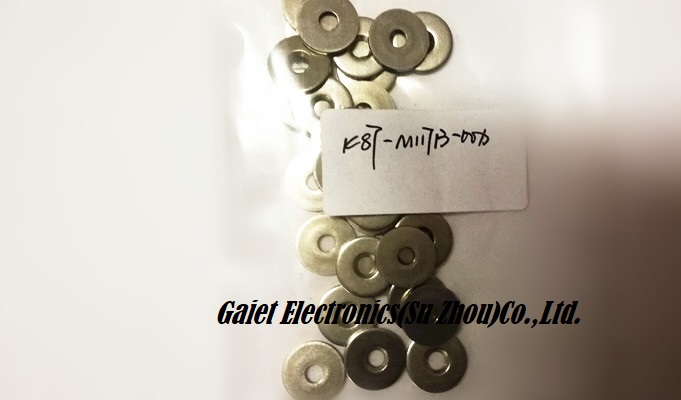

K87-M117B-00X SHIM
KW1-M119R-00X SHIM
KH2-M7819-30X PAD
KV7-M921A-00X Belt
KG7-M9115-0XX Belt
KHW-M9129-00X YV100II Belt

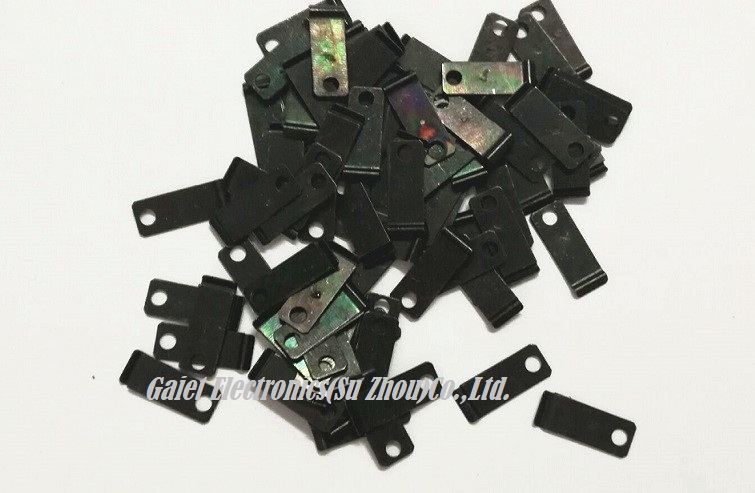

KG7-M7137-00X LEAF SPRING
90990-17J006 O-Ring
90990-17J008 O-Ring
KM5-M7174-F0X Filter Cap
KV5-M7819-B0 VACUUM PAD

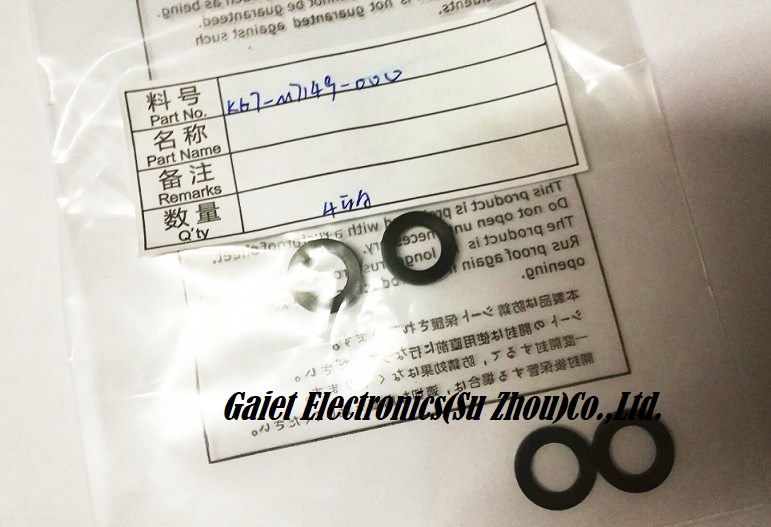

KG7-M7149-000 YAMAHA WASHER THRUST

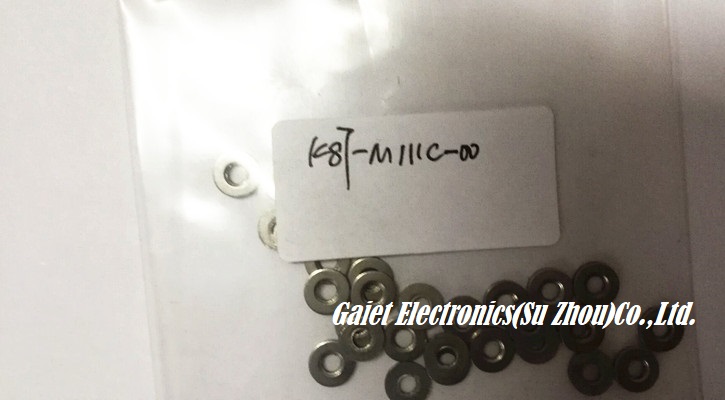

K87-M111C-00X  Plane Washer
KV7-M921D-10X PUSH UP PIN UNIT

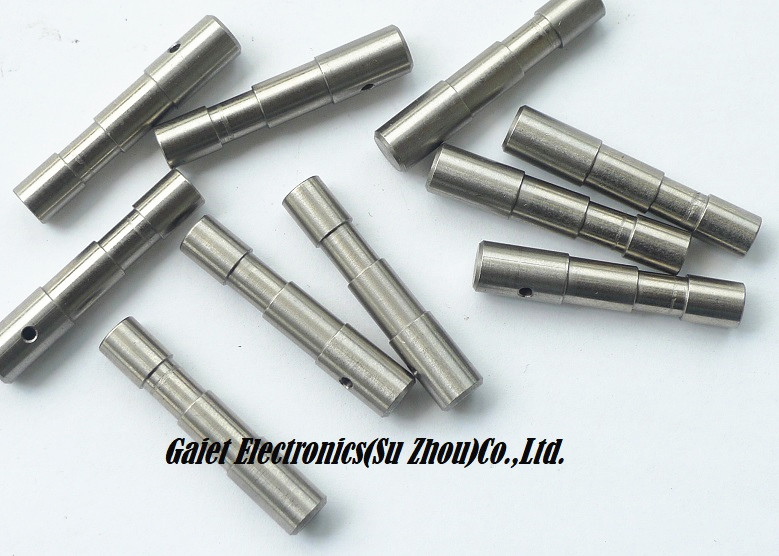

K87-M2313-00/5322 535 10531 REAR POSITIONING PIN

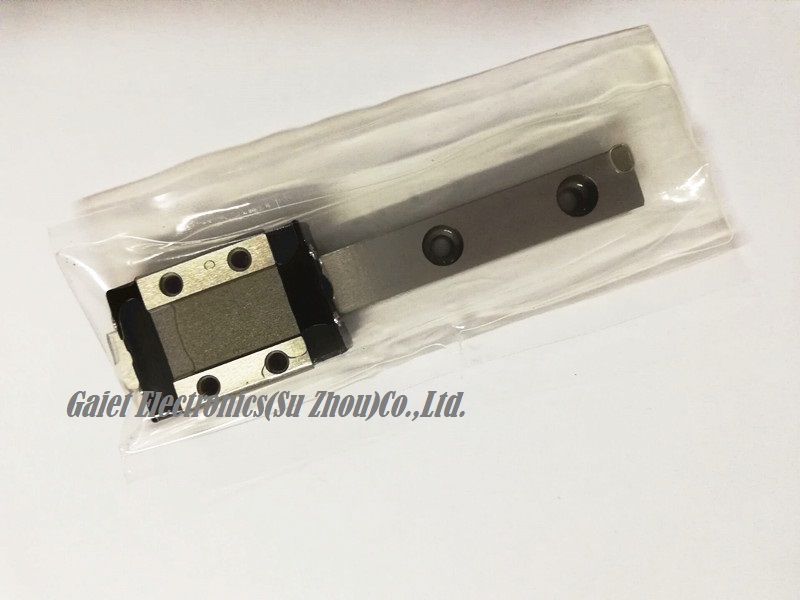

KV7-M9166-00X Slider

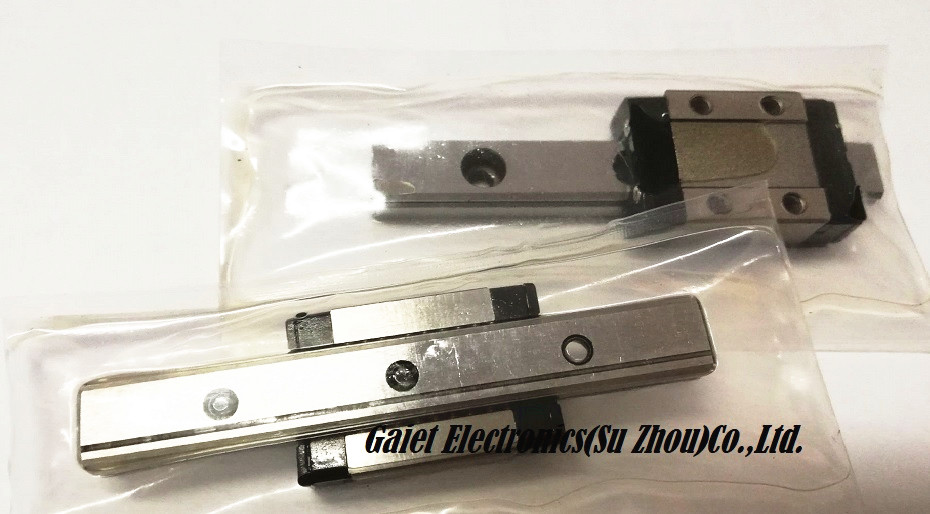

K46-M9174-10X Guide
KGK-M9267-01X Slider

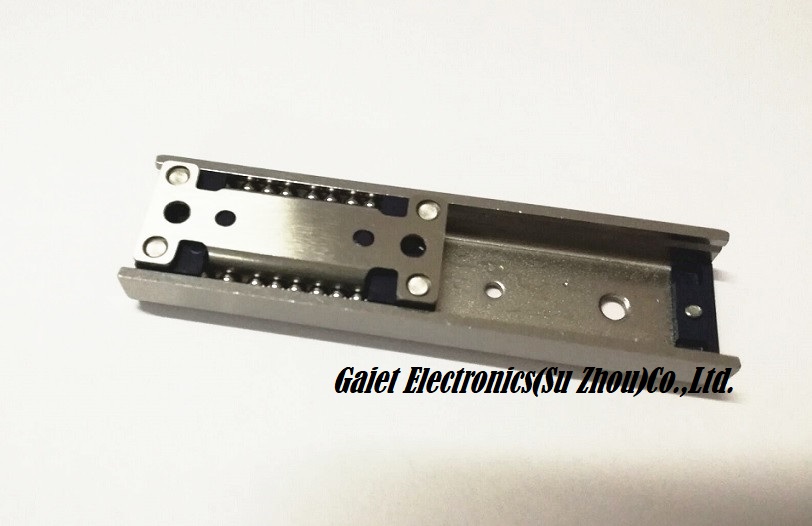

KG9-M7136-000 Slider
K93-M1388-00X Magnet Catch
KGB-M3992-00X Second-hand Original SWITCH ,SELECT

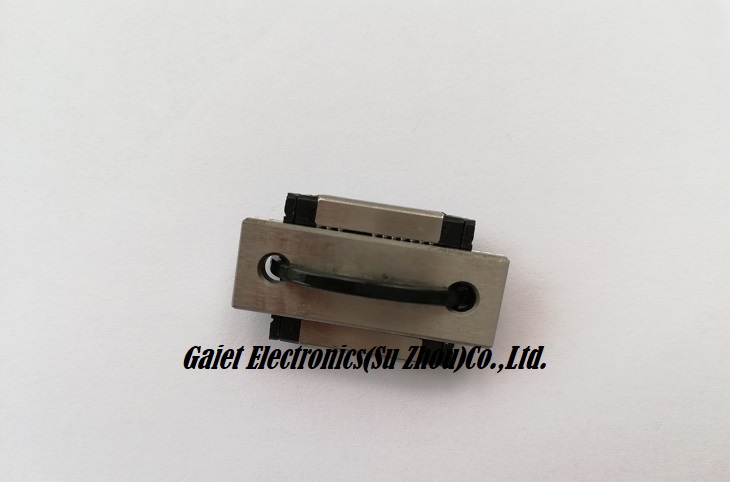

KKE-M916B-00X Slider
KHJ-MC16B-000 Pin

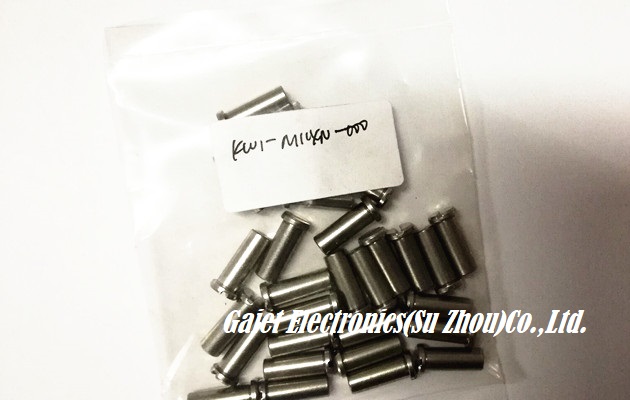

KW1-M114N-000 Pin
KLJ-MC10W-00X  FRONT BLOCK ASSY

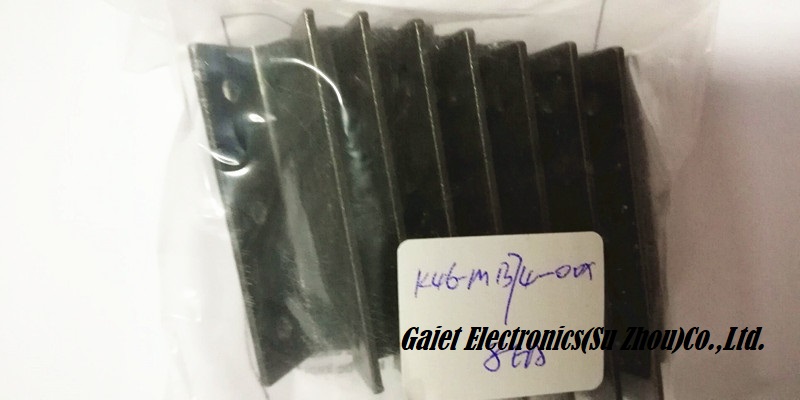

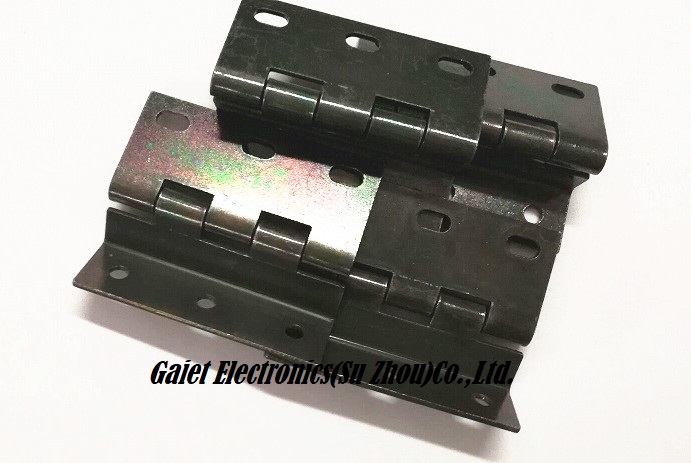

K46-M1374-00X HINGE

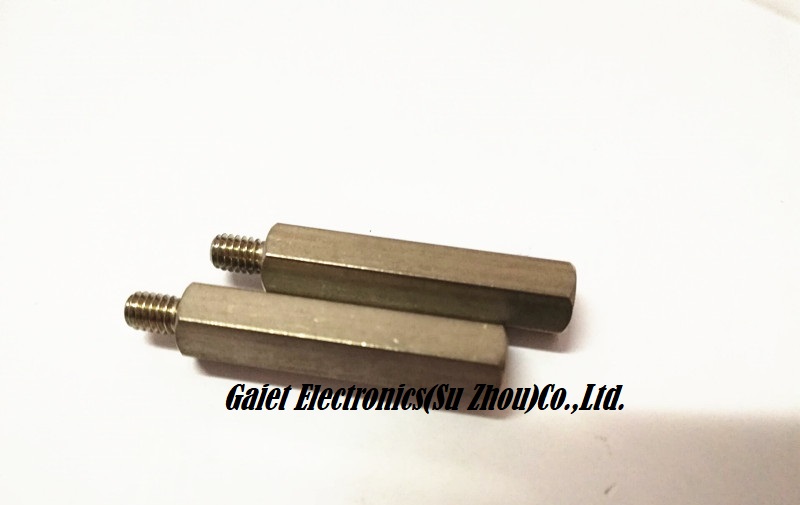

90990-05J008 SPACER BOLT 30MM
90990-05J009 SPACER BOLT 43MM

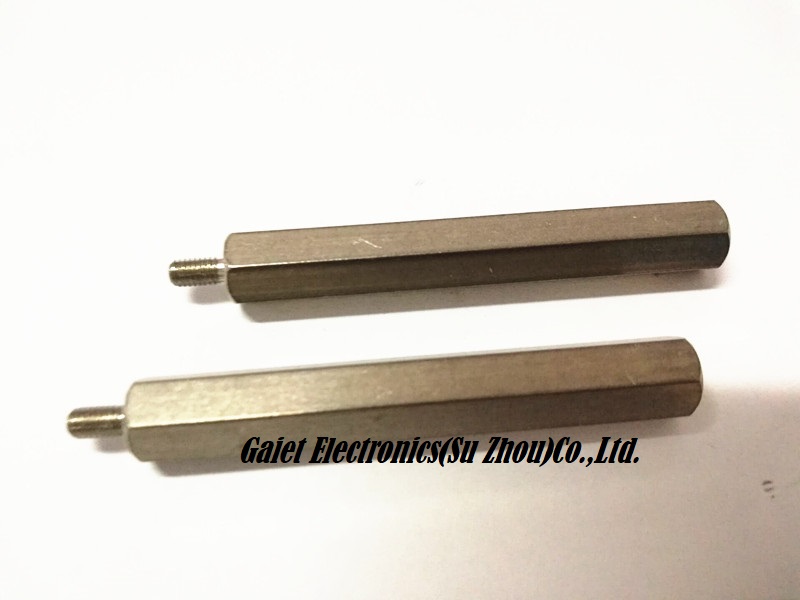

90990-05J012 SPACER BOLT 50MM

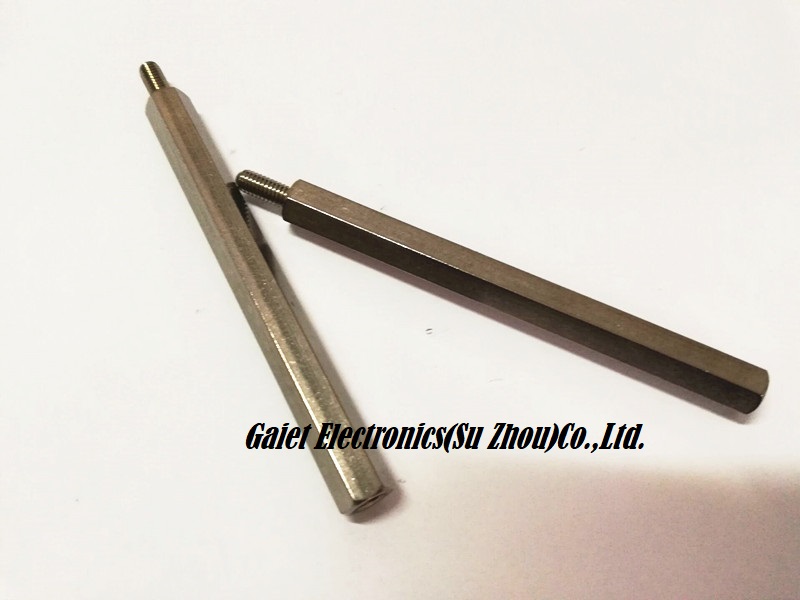

90990-05J013 SPACER BOLT 70MM
90990-05J014 SPACER BOLT 75MM

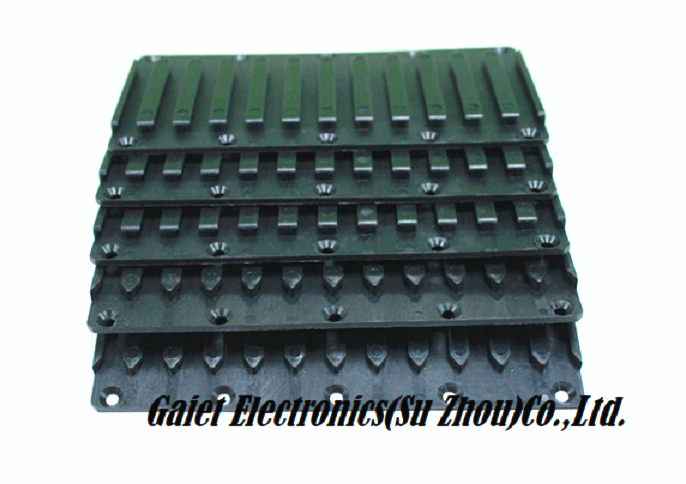

KHY-M371R-00 RAIL,GUIDE 12P
KGA-M880C-10 Ceramic Resistor
KHJ-MC149-00X Ring


















MOTOR 90K2B-OH2204










CLAMP LEVER UNIT KW1-M1132-00X Main Arm KW1-M1177-00X




















  •

  •

  •

  •
