SMD COUNTER







SMD Counter





Description
Digital Display SMD CHIP Component Counters
Characteristics:
Auto counting, easy to count, efficiency for stock management
Auto save the setup value, convenience operation
Stop and reverse automatically, easy to operate

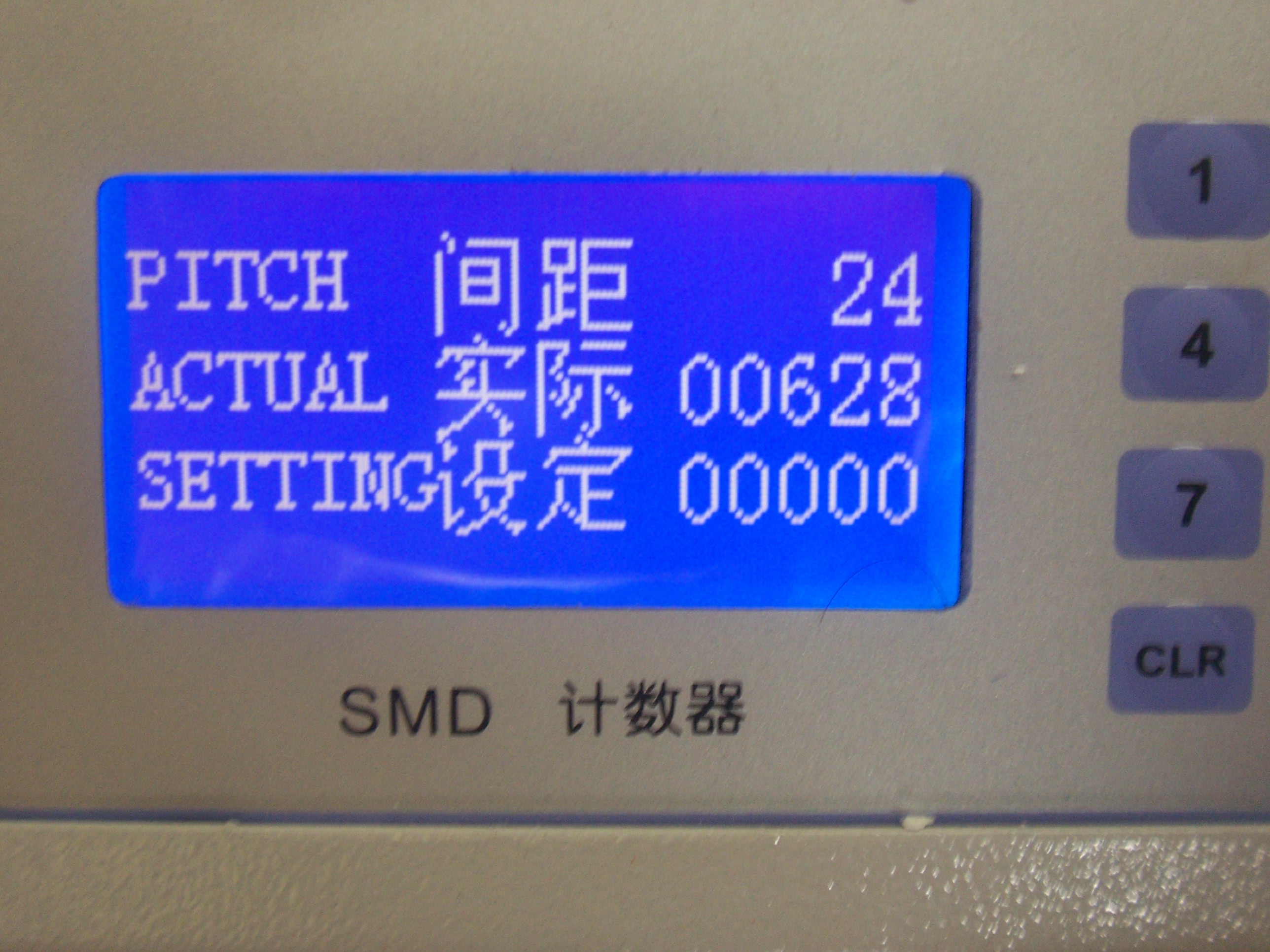

LCD monitor, easy to read
With optional sensor, you can count axial and radial components
How to use:
1. Put the counter on a worktable, plug the SMD counter into a power point and switch on the power.
2. Put a reel with components on the left tray, put a vacant reel on the right table.
3. Press button “ PITCH ” , input pitch number between two components. The common used pitch number are 2 、4、8、12、16、20、24、28、32、36、40、44、48、52、56mm 。
4. Drop the carrier tape from the left reel with components, loose the handle, fix the two sprockets into the holes of the tape.
5. fix the tape into the vacant reel, press RESET button.
6. Press button “QTY” to input the quantity you want to count, after you’ve inputted the quantity then press “ENTER” button
7. Then press button forward direction, mark: due to forward Inertia, though the machine has stopped to counter, the machine will counter several components more than you inputted number, in this case you can drag the tape back to the right number.
8. If you want to count once more, then press backward direction button, when it display number zero, the machine will stop automatically.
9. If you hope to choose the optional function to count axial and radial components with the external sensor, please press button “DIVIDER”, input the quantity you hope to count then press “ENTER”
Specification:
Reel Diameter Suitable for any size, max diameter 350 mm
Reel Width 8, 12, 16, 24, 32, 44, 56 (mm)
Reel Pitch No Limit, generally 2, 4, 8, 12, 16, 24, 32, 44, 56(mm)
Power AC100V 60Hz/ AC 220V 50Hz
Power Consumption 20W Approx.
Count Capacity -99999 ~ 99999















































































































  •

  •

  •

  •
