YAMAHA SMT NOZZLE



We manufacturer and supply Yamaha SMT Nozzles. All these nozzles are with high quality and very competitive price. Many famous EMS companies from more than 30 countries are using them for many years. They are welcome.



include：31A/32A/33A/34A/71A/72A/73A/74A/71F/72F/73F/201A/202A/203A/209A/211A/212A/213A/214A/

219A/301A/302A/303A/309A/311A/312A/313A/314A /61A/62A/63A/64A/65A/61F/62F/63F/64F/65F/66F/69F



We also produce custom nozzles for YAMAHA Pick and Place Machine. Please tell us the detailed demand and we will customize them according to the requirements.





YAMAHA YV88X SMT NOZZLE











Part Number Description
KV7-M7710-A1X NOZZLE 61A

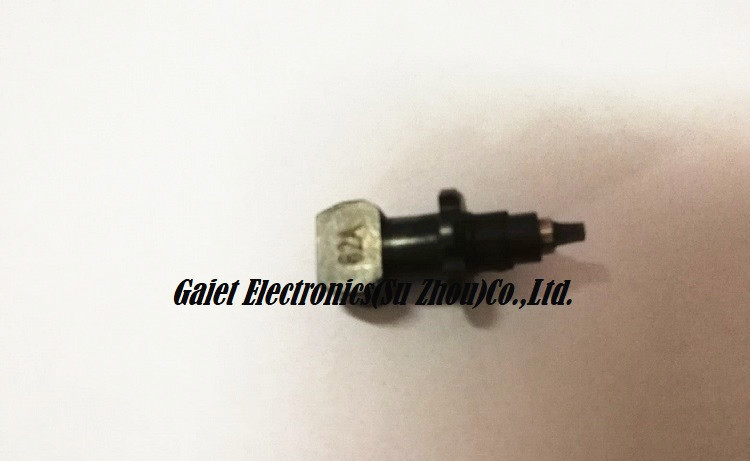

KV7-M7720-A0X NOZZLE 62A

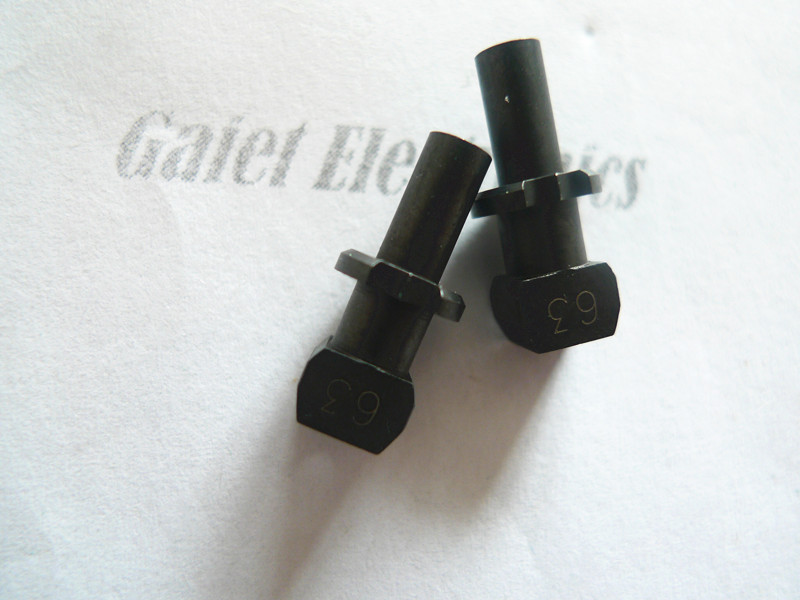

KV7-M7730-00X NOZZLE 63A
KV7-M7740-A0X NOZZLE 64A
KV7-M7750-A0X NOZZLE 65A

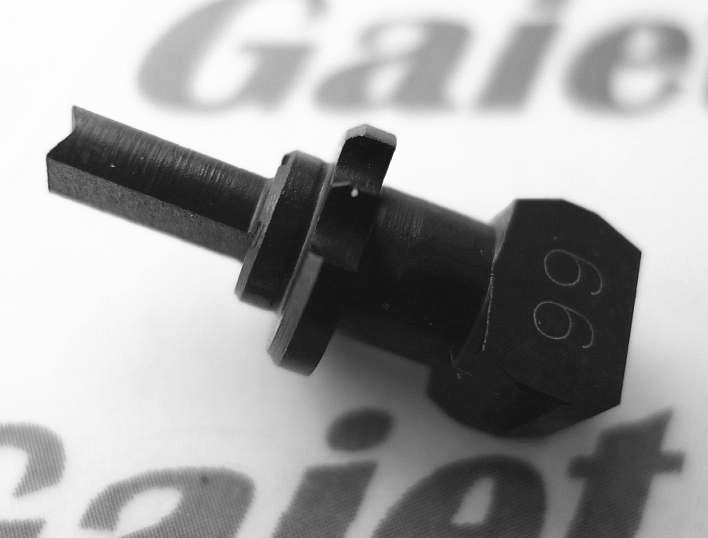

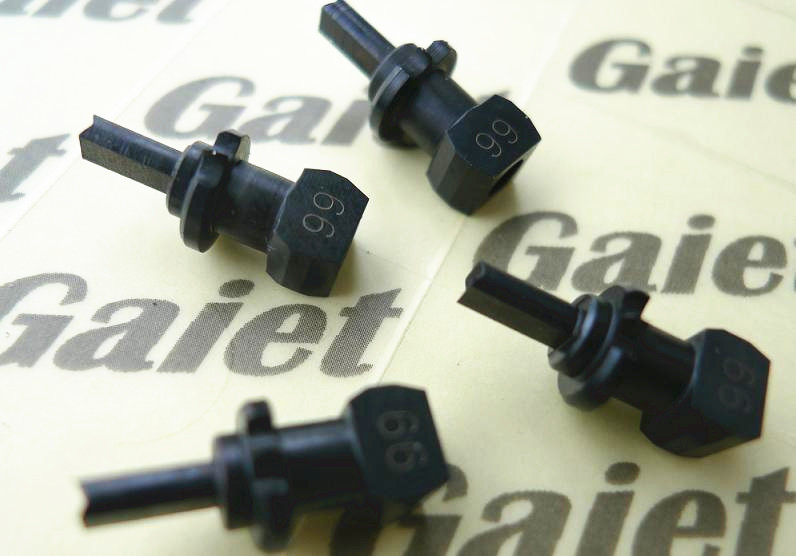

KV7-M7760-00X NOZZLE 66A
KV7-M7790-A0X NOZZLE 69A
KGA-M71N1-A0X  TYPE 61F (2 HOLES)

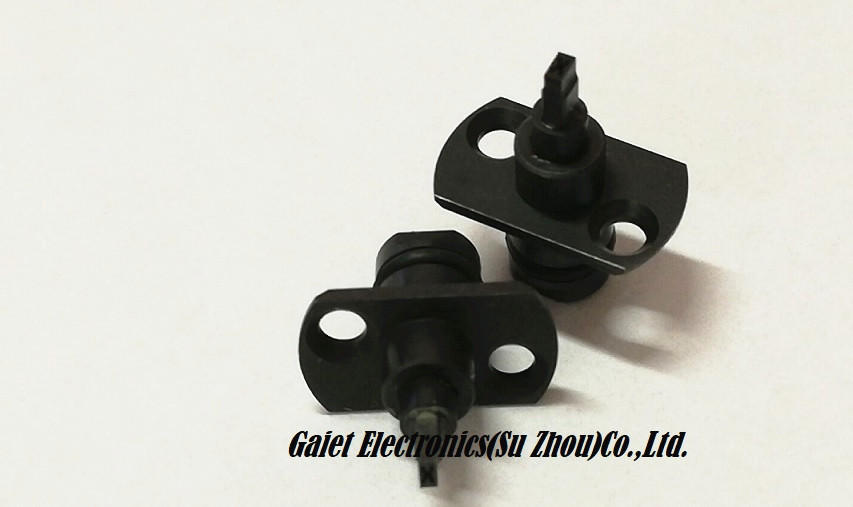

KV7-M71N2-A0X TYPE 62F (2 HOLES)

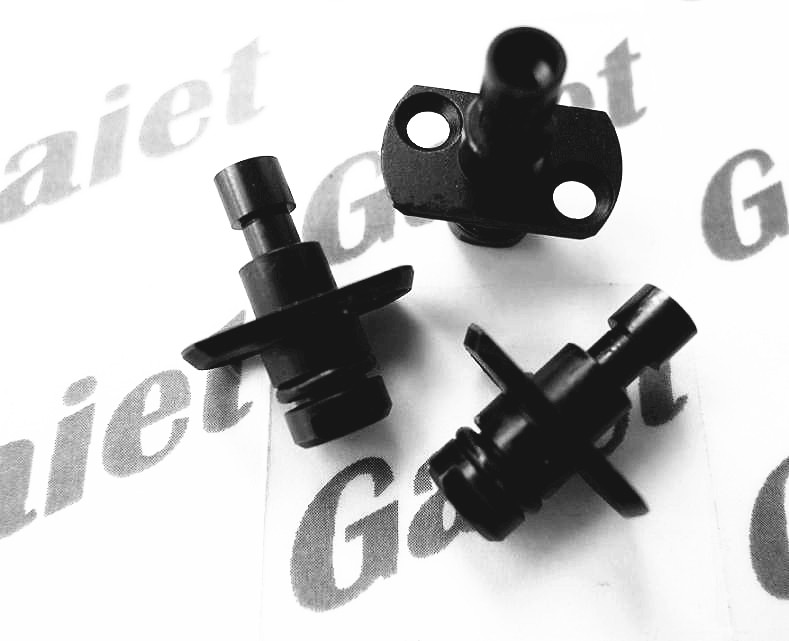

KV7-M71N3-A1X NOZZLE 63F

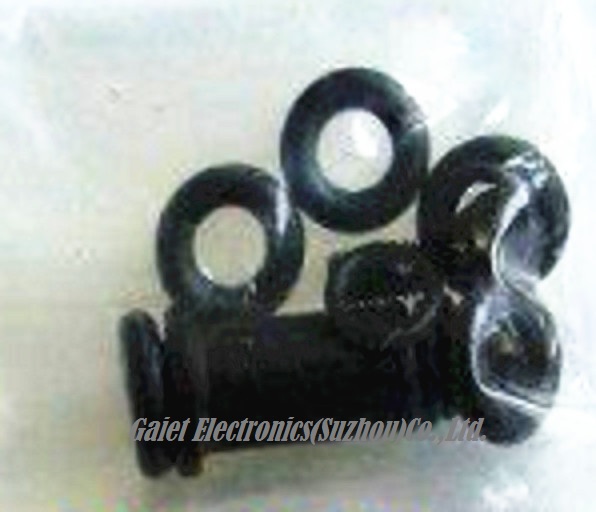

KV7-M71N4-A0X NOZZLE 64F
KV7-M71N5-A0X NOZZLE 65F
KV7-M71N6-A0X NOZZLE 66F
KV7-M71N9-A0X NOZZLE 69F







YAMAHA YV100X YV180X SMT NOZZLE



YAMAHA Nozzle 71A KV8-M7710-A1X

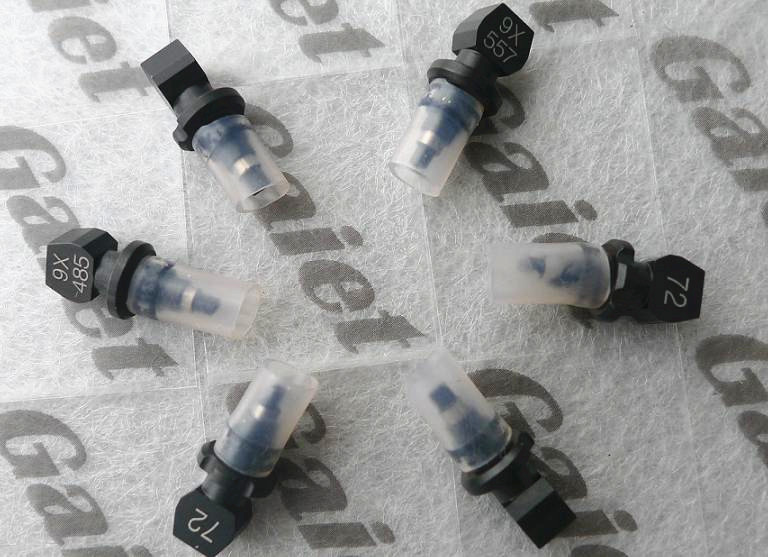

YAMAHA Nozzle 72A KV8-M7720-A0X

YAMAHA Nozzle 73A KV8-M7730-00X

YAMAHA Nozzle 74A KV8-M7740-A0X

YAMAHA Nozzle 76A KV8-M7760-00X

YAMAHA Nozzle 79A KV8-M7790-A0X

YAMAHA Nozzle 71F KV8-M71N1-A0X







Part Number Description
KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F A
KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F A

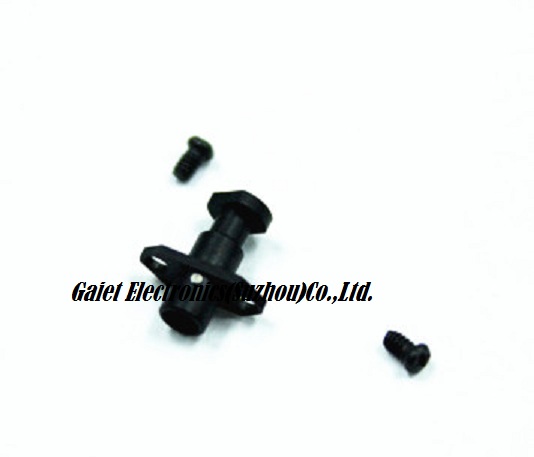

KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F A

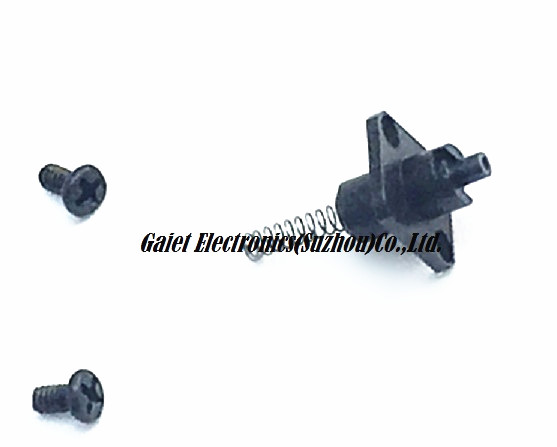

KV8-M71N9-A0X		 NOZZLE 79F ASSY 1 TYPE79F A
KV8-M7710-A1X NOZZLE 71A ASSY.
KV8-M7720-A0X NOZZLE 72A ASSY.
KV8-M7730-00X NOZZLE 73A
KV8-M7740-A0X NOZZLE 74A
KV8-M7760-00X NOZZLE 76A
KV8-M7790-A0X NOZZLE 79A







YAMAHA YV100 YVL88 SMT NOZZLE









Part Number
Description
KM0-M711A-02R
NOZZLE - A (TYPE 39)
KM0-M711A-31X
NOZZLE TYPE 31
KM0-M711C-02X
NOZZLE TYPE 32
KM0-M711D-00X

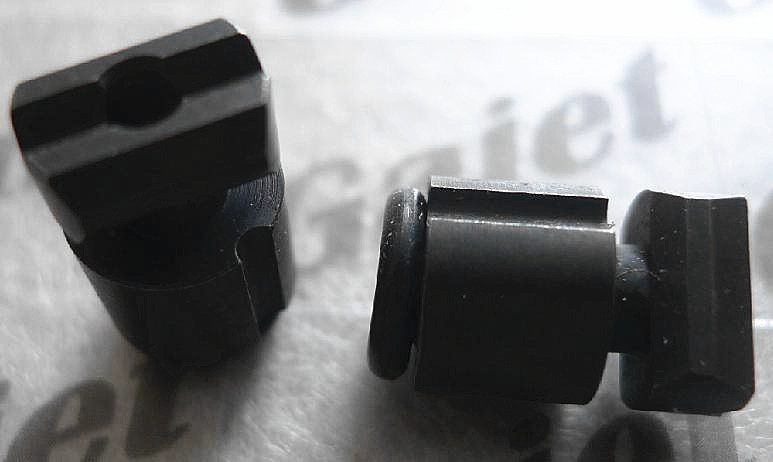

NOZZLE TYPE 33
KM0-M711E-00X
NOZZLE TYPE 34
KG7-M71AB-A0X
NOZZLE TYPE 35
KM0-M71MN-A0X
CIRCLE NOZZLE 3A
KM0-M711J-A0X
NOZZLE TYPE39 ASSY.







YAMAHA YG100 SMT NOZZLE













Part Number
Description
KV8-M71N3-A0X
NOZZLE 73F ASSY 1 TYPE73F
KGS-M7710-A1X

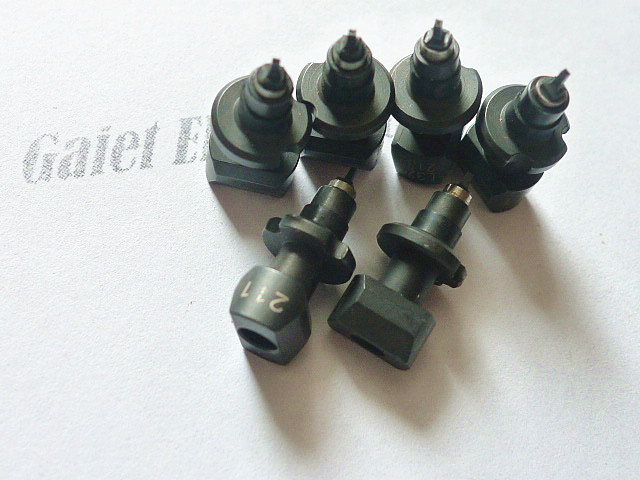

NOZZLE 211A ASSY.
KGS-M7720-A1X

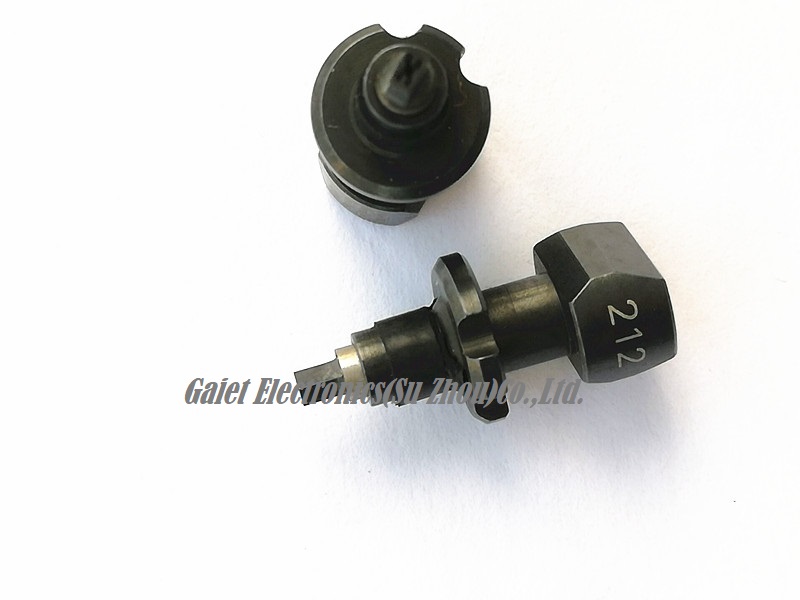

NOZZLE 212A ASSY.
KGS-M7730-01X

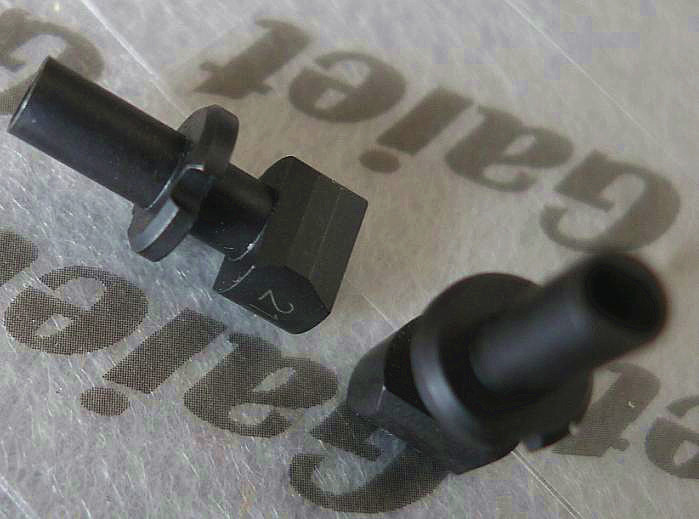

NOZZLE 213A
KGS-M7740-A1X
NOZZLE 214A ASSY.
KGS-M7750-A1X
NOZZLE 215A ASSY.
KGS-M7760-01X
NOZZLE 216A
KGS-M7790-A1X
NOZZLE 219A ASSY.
KV8-M711N-A0X
NOZZLE & SHAFT ASSY. 1
KV8-M71U0-01X
NOZZLE ASSY. 1 71/ 72/ 73F







YAMAHA YG100 SMT NOZZLE













Part Number
Description
KGT-M7710-A0X

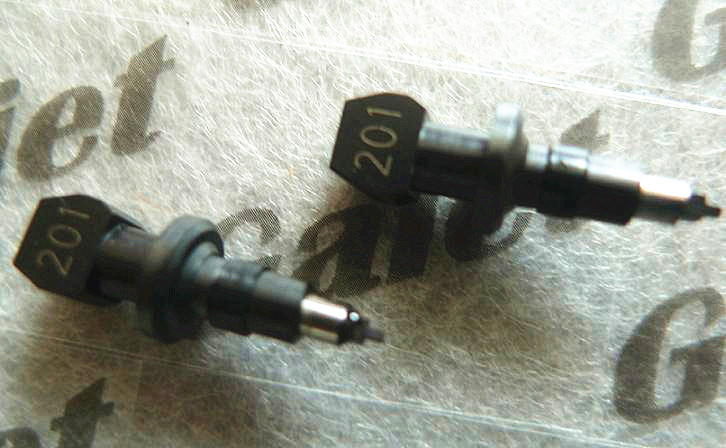

NOZZLE 201A ASSY. 1 Type 201A
KGT-M7720-A0X
NOZZLE 202A ASSY. 1 Type 202A
KGT-M7730-A1X
NOZZLE 203A ASSY. 1 Type 203A
KGT-M7760-A0X
NOZZLE 206A ASSY. 1 Type 206A
KGT-M7790-A0X
NOZZLE 209A ASSY. 1 Type 209A







YG12，YG12F，YS12，YS12F, YSM20, YS24,YS24X SMT NOZZLE













Part Number Description

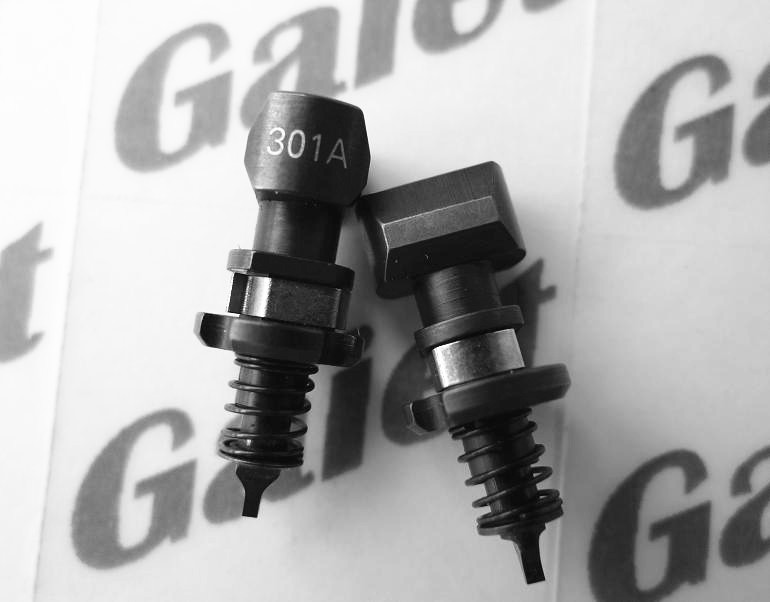

KHN-M7710-A2 NOZZLE 301A ASSY.
KHN-M7710-A1 NOZZLE 301A ASSY.

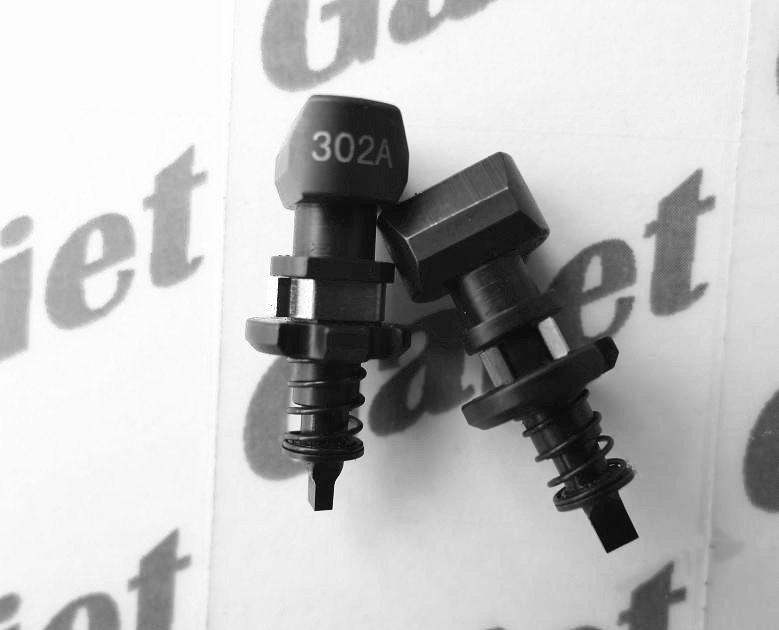

KHN-M7720-A1 NOZZLE 302A ASSY.
KHN-M7740-A1 NOZZLE 304A ASSY.

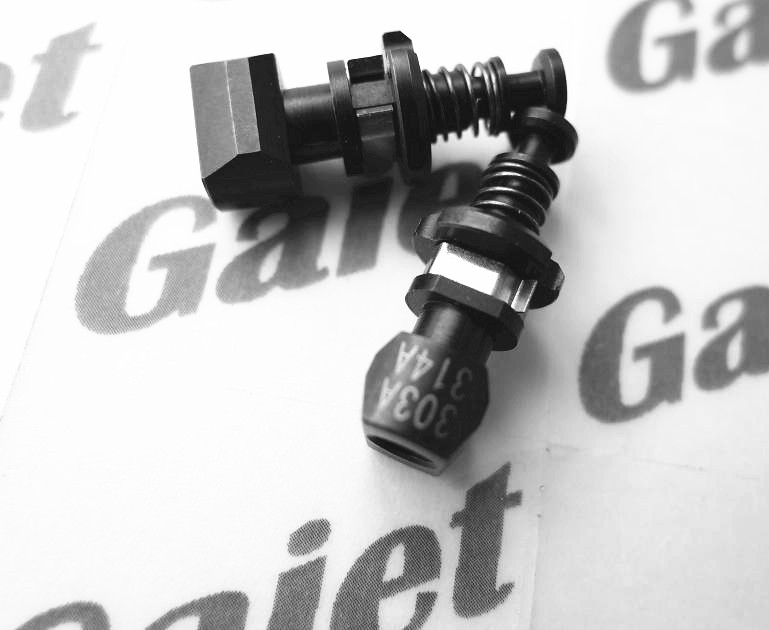

KHY-M7740-A0 NOZZLE 303A/314A ASSY
KHY-M7750-A0X NOZZLE 304A/315A ASSY.
KHY-M7760-A0 NOZZLE 306A/317A ASSY.
14.4~16.2 NOZZLE CLIP-ON







YAMAHA YV112 COMET SMT NOZZLE











Part Number
Description

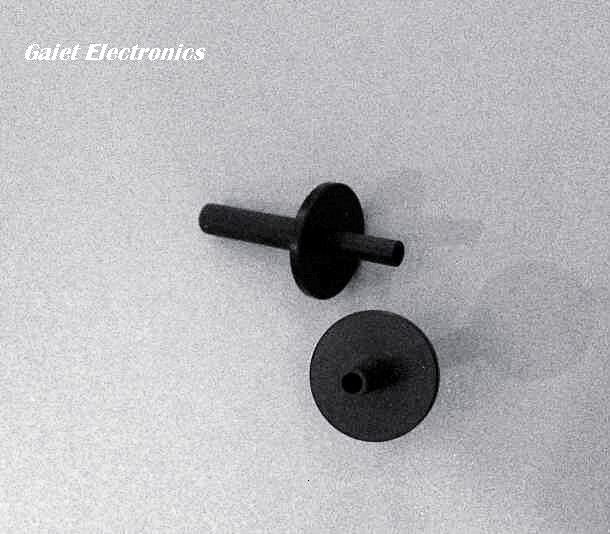

KG2-M7191-300
TYPE 3 Ø 3.0/ Ø 2.0







YAMAHA YG88R SMT NOZZLE











Part Number
Description

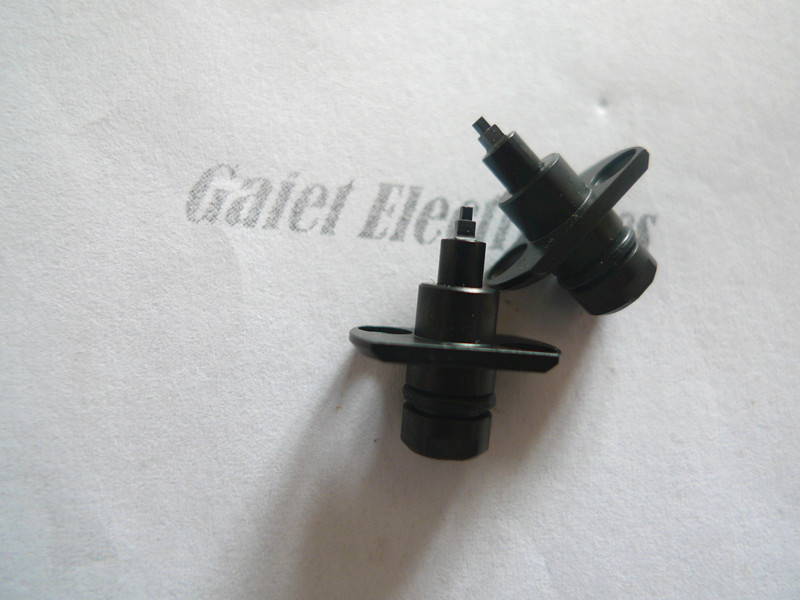

KGR-M71N1-B0X
NOZZLE 221F SUB ASSY
KGR-M71N2-B0X
NOZZLE 222F SUB ASSY







YAMAHA YGD  SMT NOZZLE











Part Number Description

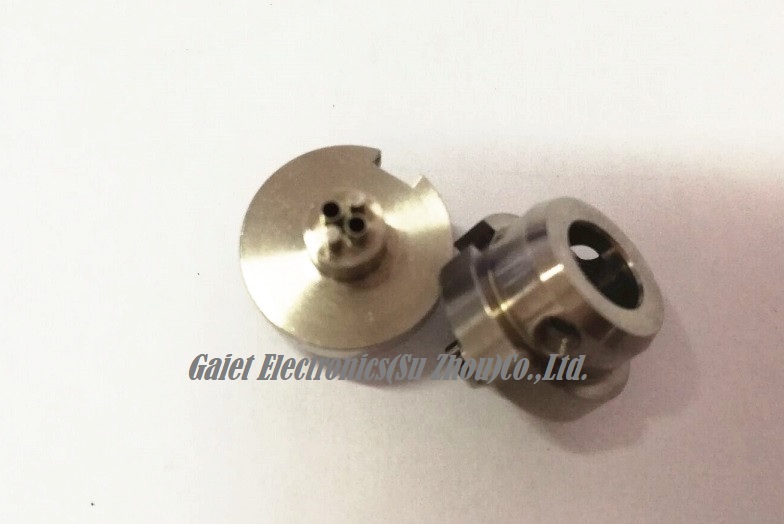

KV6-M711A-0XX NOZZLE

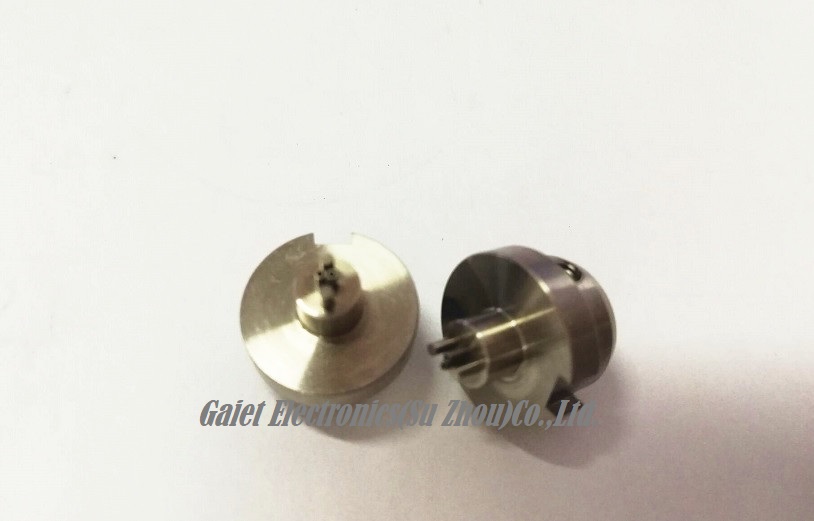

KV6-M7113-1XX NOZZLE







YAMAHA NOZZLE SHAFT









Part Number Description Model
KM1-M710S-A0X NOZZLE SHAFT ASSY YAMAHA YV100II
NOZZLE SHAFT ASSY YAMAHA YSM20



Yamaha nozzle and parts as below:


Yamaha YG100：KGS-M7710-A1X NOZZLE 211A ASSY.
Yamaha YG100：KGS-M7720-A1X NOZZLE 212A ASSY.
Yamaha YG100：KGS-M7730-01X NOZZLE 213A
Yamaha YG100：KGS-M7740-A1X NOZZLE 214A ASSY.
Yamaha YG100：KGS-M7750-A1X NOZZLE 215A ASSY.
Yamaha YG100：KGS-M7760-01X NOZZLE 216A
Yamaha YG100：KGS-M7790-A1X NOZZLE 219A ASSY.
Yamaha YG100：KV8-M711N-A0X NOZZLE & SHAFT ASSY.  (TYPE 72)
Yamaha YG100：KV8-M71U0-02X NOZZLE ASSY.
Yamaha YG100：KV8-M71N1-A1X NOZZLE 71F ASSY.
Yamaha YG100：KV8-M71N2-A1X NOZZLE 72F ASSY.
Yamaha YG100：KV8-M71N3-A0X NOZZLE 73F ASSY.
Yamaha YG100：KV8-M71U5-00X SCREW
Yamaha YG100：KV8-M71U8-00X BLOCK, NOZZLE
Yamaha YG100：KV8-M71R1-10X SHAFT 1
Yamaha YG100：KV8-M71R1-20X SHAFT 1
Yamaha YG100：KV8-M71R1-30X SHAFT 1
Yamaha YG100：KV8-M712N-A0X NOZZLE & SHAFT ASSY. (TYPE 79)
Yamaha YG100：KV8-M71U0-11X NOZZLE ASSY.
Yamaha YG100：KV8-M71N9-A1X NOZZLE 79F ASSY.
31A/32A/33A/34A/71A/72A/73A/74A/71F/72F/73F/201A/202A/203A/209A/211A/212A/213A/214A/219A/301A/302A/

303A/309A/311A/312A/313A/314A /61A/62A/63A/64A/65A/61F/62F/63F/64F/65F/66F/69F
KV8-M7710-A1X NOZZLE 71A ASSY.
KV8-M7720-A0X NOZZLE 72A ASSY.
KV8-M7730-00X NOZZLE 73A
KV8-M7740-A0X NOZZLE 74A
KV8-M7760-00X NOZZLE 76A
KM0-M711A-31X TYPE 31
KM0-M711C-02X TYPE 32
KM0-M711D-00X TYPE 33
KM0-M711E-00X TYPE 34
KG7-M71AB-A0X TYPE 35
KV8-M71N1-A0X NOZZLE 71F
KV8-M71N2-A0X NOZZLE 72F
KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
KGT-M7710-A0X NOZZLE 201A ASSY. 1 Type 201A
KGT-M7720-A0X NOZZLE 202A ASSY. 1 Type 202A
KGT-M7730-A1X NOZZLE 203A ASSY. 1 Type 203A
KGT-M7760-A0X NOZZLE 206A ASSY. 1 Type 206A
KGT-M7790-A0X NOZZLE 209A ASSY. 1 Type 209A
KV8-M711N-A0X NOZZLE & SHAFT ASSY. 1
KV8-M71U0-01X NOZZLE ASSY. 1 71/ 72/ 73F
KHN-M7710-A2 NOZZLE 301A ASSY.
KHN-M7710-A1 NOZZLE 301A ASSY.
KHN-M7720-A1 NOZZLE 302A ASSY.
KHY-M7740-A0 NOZZLE 303A/314A ASSY
KHY-M7750-A0 NOZZLE 304A ASSY.
KHY-M7760-A0 NOZZLE 305A ASSY.
KHN-M7770-A0 NOZZLE 306A ASSY.
KHY-M7790-A0 NOZZLE 309A ASSY
KHY-M77A0-A0 NOZZLE 310A ASSY.
KHY-M7710-A0 NOZZLE 311A ASSY.
KHN-M7720-A0 NOZZLE 312A ASSY.
KHY-M7730-A0 NOZZLE 313A ASSY
YVL88/YV100 PICK UP NOZZLE：
KM9-M7107-00X SHAFT, HEAD ASSY YV100II
KM9-M7106-00X SHAFT HEAD ASSY YV100II
KV8-M713S-A0X STD.SHAFT2,SPARE YV100X
KV8-M712S-A0X STD.SHAFT1,SPARE YV100X
KV8-M711S-A0X FNC SHAFT,SPARE YV100X
KGB-M711S-A0X FNC SHAFT,SPARE YV100XG
KGB-M712S-A0X STD.SHAFT1,SPARE YV100XG
KGT-M712S-A0X STD. SHAFT 1, SPARE YG200X



We also supply YAMAHA spare parts .such as YAMAHA feeder parts , YAMAHA machine parts , YAMAHA filters, YAMAHA belts, YAMAHA Feeder Carts, AI parts ,etc.







  •

  •

  •

  •
