Gridlock PCB-Support  Model:Gridlock PCB-S-P-P



Model : Gridlock PCB-S-P-P


Brief introduction to the PCB-Supports module Gridlock PCB-S-P-P



New-style PCB-Supports module: Gridlock PCB-S-P-P is a new product that is brought to the market after two years' research by our company's professionals. They combine their rich on-site experience with overseas technology to research PCB-Supports Gridlock PCB-S-P-P. At present, some large-scale enterprises have accepted and introduced this product.



Product usage:
PCB-Supports Gridlock PCB-S-P-P is a new product that is specially designed for solving following problems: a large amount of debug time and possible damage to component and PCB microcircuitry caused by hard pin and gauge when using high-density and two-sided PCB to print and mount. The PCB-Supports module Gridlock PCB-S-P-P can help you solve printing press and chip mounter's problem of touching the board. Anyone can use this product handily.



Product advantageous:
1. Easy operation: directly put the pin module into two guide rails. PCB need no precise alignment.
2. Increase efficiency: saving more time when changing wires than using original hard PIN.
3. Good generality: applying to any PCB and any brand of printing press.
4. Safe and reliable: avoiding damages to component and microcircuitry caused by inaccurate alignment.
5. Durability: adopting precision mechanical principle. Guaranteeing 2 to 3 years's service life under normal operation.



Technical parameters:
1. External dimension: L 200mm × W 42mm ,L 300mm × W 56mm,(standard size). We can customize different sizes according to customer's different needs.
2. Anti-static parameters: below 1000 Meg.



Applied to :
1. All printing presses in the market, eg. DEK,MPM,PANA,EKRA,YAMAHA,HITACHI,GKG,DESEN
2. All kinds of chip mounters, eg. PANASONIC,FUJI,SIEMENS,JUKI,YAMAHA,SAMSUNG,PHILIPS,SONY,SANYO

Operating instructions:
1. First, put the pin module Gridlock PCB-S-P-P on the supporting platform of printing press. Decide the quantity of pin module according to the size of PCB. PCB enters into the platform of the printing press through the track, meanwhile, the platform rises.

2. If the pin touches PCB, the pin of component will go down automatically. Then, lock the pin module. So the pin will form a shape similar to gauge according to the distribution of PCB component.

3. We can see the overall distribution of pins after we remove PCB.
4. Later, if using the same PCB to print, PCB can be directly conveyed to platform through the track. Then the fixed pin module touches PCB to start printing.
5. If wires need to be changed, we just need loosen lever of the pin module and repeat the first step. It takes about 30 to 150min when using original hard PIN to change wires, but now it takes less than 10sec by using the pin module.
We all know that it's a trouble to set up double sides PCB board with high density of components if you use PIN, JIG, now you can solve this problem with ease with our PCB-Support-Pin-Blocks/Matrix.



Characteristics
1.Just put the PCB board on the PCB-Support-Pin-Blocks/Matrix , you needn't so any other things, it really save your time.
2.Our PCB-Support-Pin-Blocks/Matrix is very soft, so all components on your PCB board will not be damaged
3.Our PCB-Support-Pin-Blocks/Matrix is anti-static, it avoids static damages your components.
4.Durable—Our PCB-Support-Pin-Blocks/Matrix  can be repeatedly used more than 6000hours with the temperature lower than   100 centigrade.



Our PCB-Support-Pin-Blocks has a magnetic bottom, what you need is just put it on the board, or for some special machine, it canbe fixes with screws.Now we can offer you PCB-Support-Pin-Blocks for most common machines such as Philips, Fuji, Panasonic, Siemen, Universal, Juki and so on.



Dimensions: L 200mm × W 42mm ,L 300mm × W 56mm



When you need, please mark the total height of Gridlock PCB Support you need.





PART NO.
DESCRIPTION
125mm*40mm*20mm PCB Support PIN with body
125mm*40mm*20mm Rubber PIN
Gridlock PCB-S-P-P  Gridlock PCB-Support







Gridlock PCB-S-P-P







Gridlock PCB-S-P-P





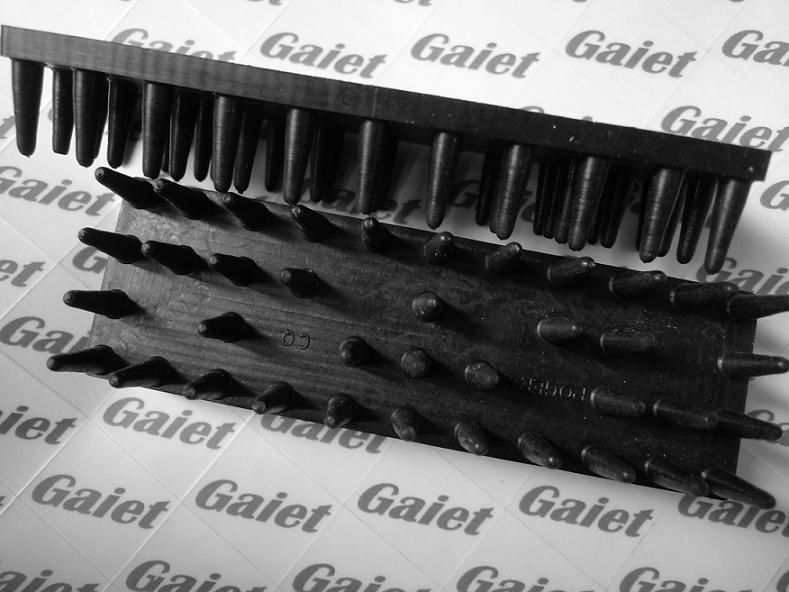

Rubber PIN





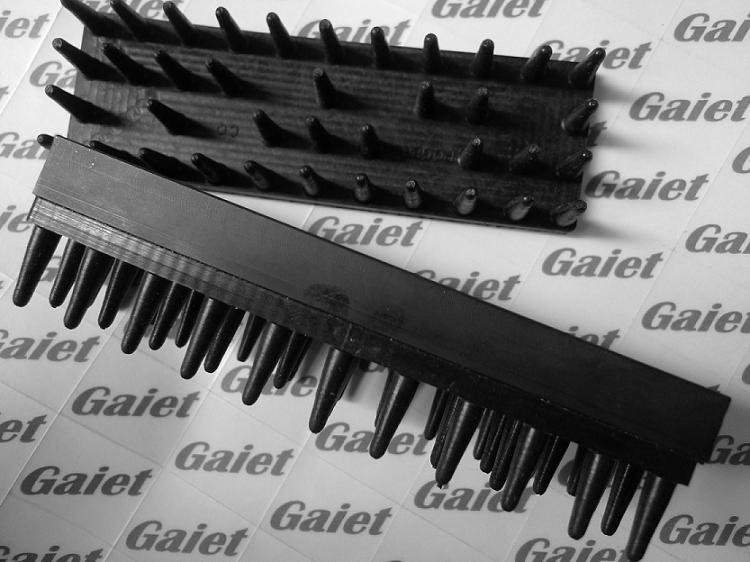

PCB Support PIN with body















  •

  •

  •

  •
