SAMSUNG SMT NOZZLE

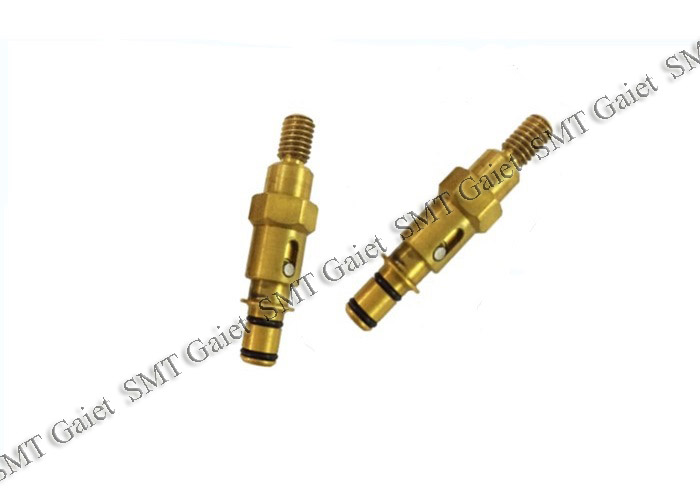

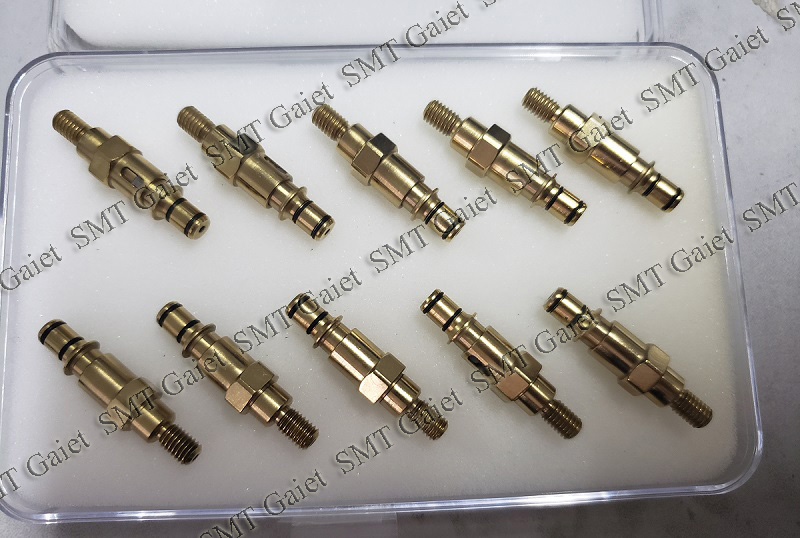

SMT CP40 NOZZLE HOLDER

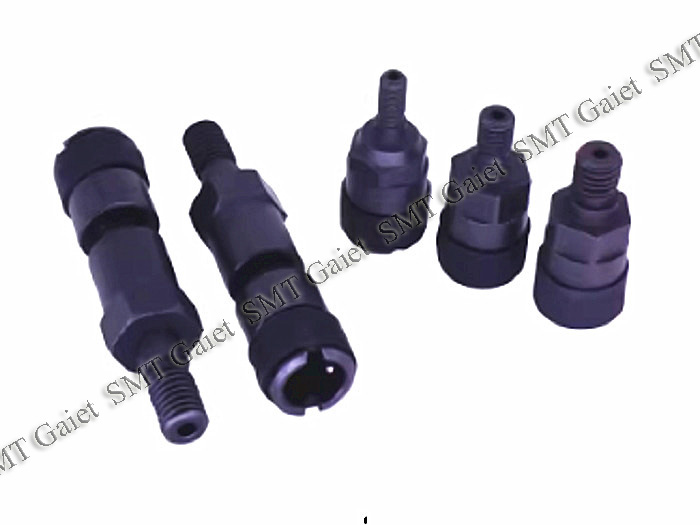

SMT CP45FV CP45NEO nozzle Holder

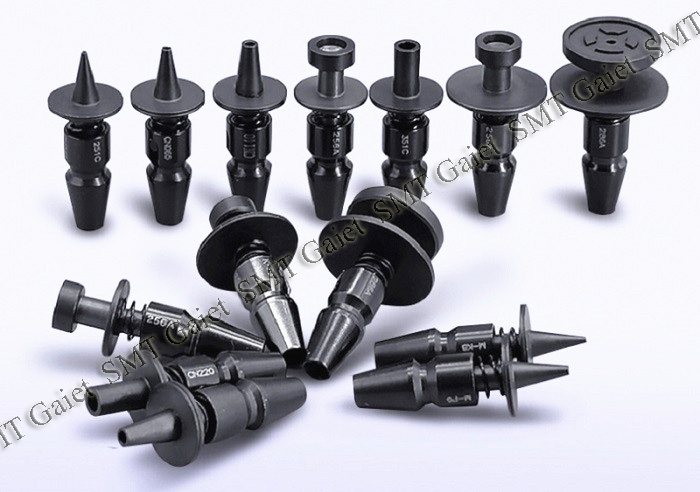

SMT CP45 SAMSUNG NOZZLE





Part Number Description

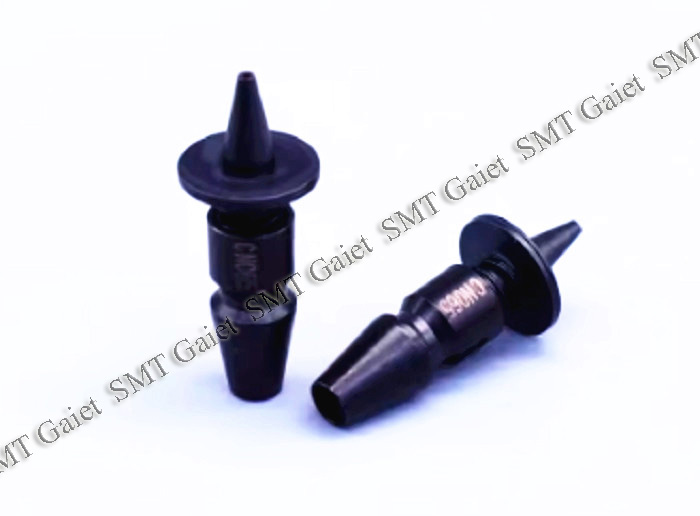

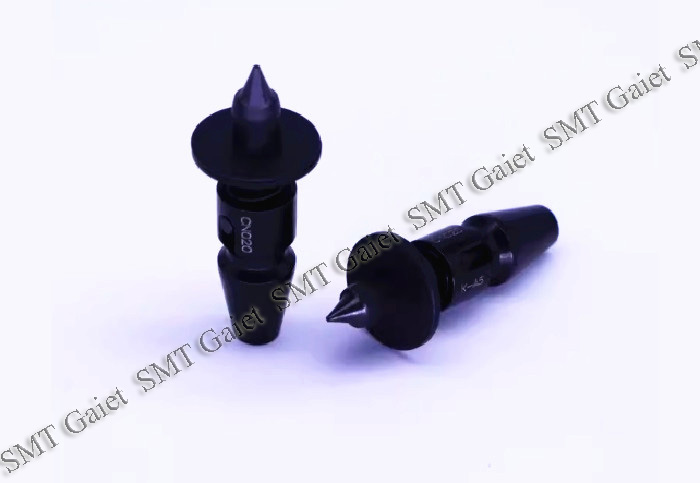

J90551006A CP45 NEO PICK UP NOZZLE – Ø0.5/Ø0.16 (CN020)

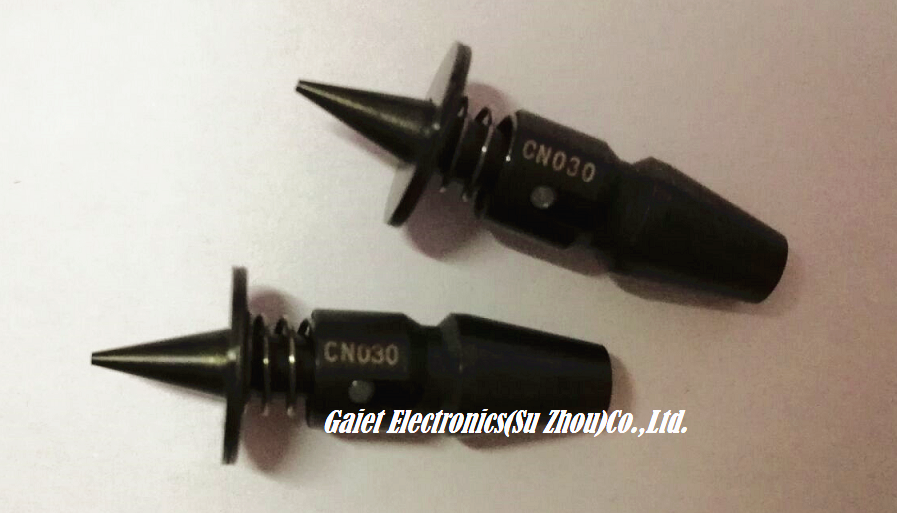

J9055133B     CP45 NEO PICK UP NOZZLE – Ø0.8/Ø0.28 (CN030)

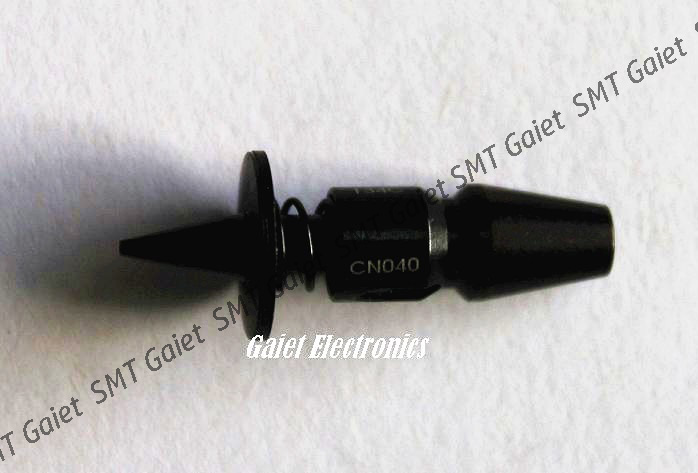

J9055134B     CP45 NEO PICK UP NOZZLE – Ø0.75/Ø0.38 (CN040)

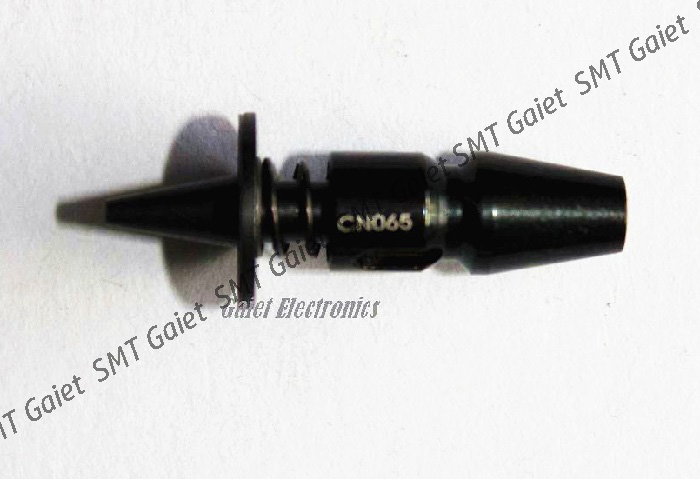

J9055135B    CP45 NEO PICK UP NOZZLE – Ø1.2/Ø0.65 (CN065)
J9055143B CP45 NEO PICK UP NOZZLE – Ø12.2/Ø11.7 (CN110)
J9055138B    CP45 NEO PICK UP NOZZLE – Ø2.2/Ø1.4 (CN140)

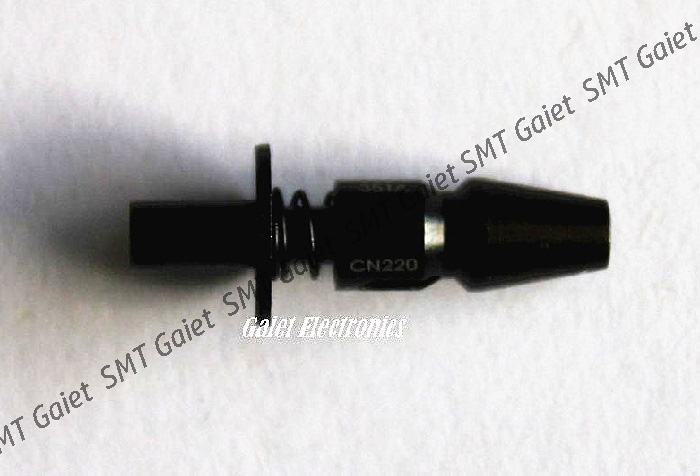

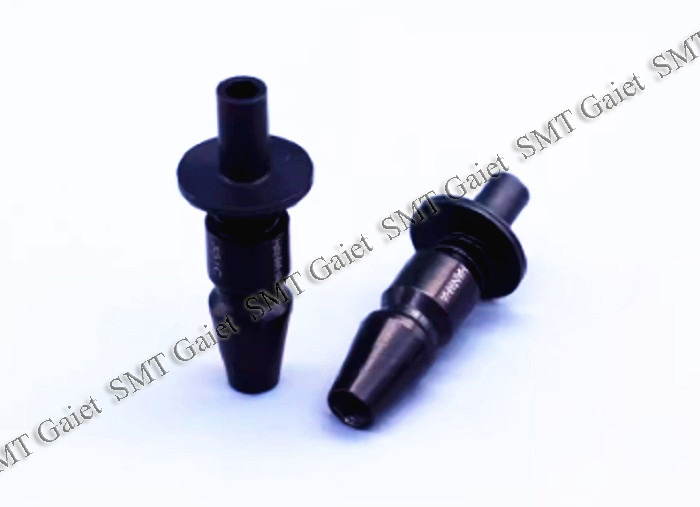

J9055139B J9055257A CP45 NEO PICK UP NOZZLE – Ø3.6/Ø2. 2(CN220)
J9055258A CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (CN400)(Disk ø9.8)

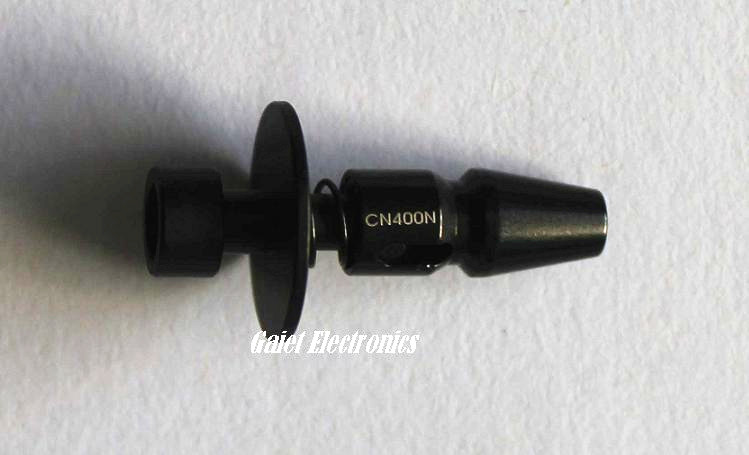

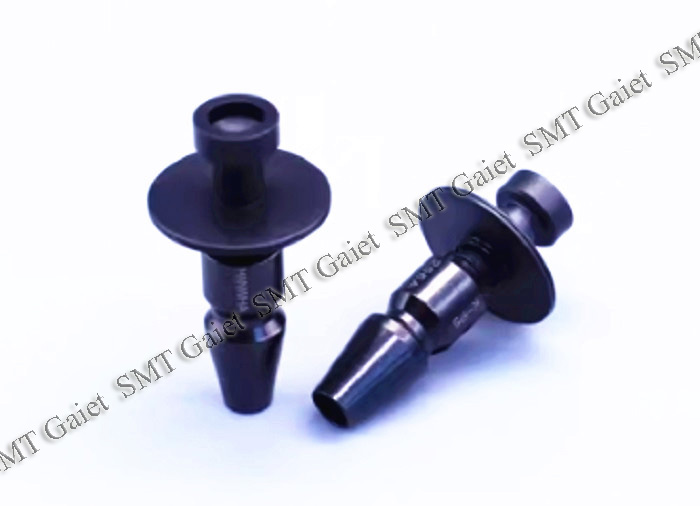

J9055218A CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (CN400N)(Disk ø13.4)

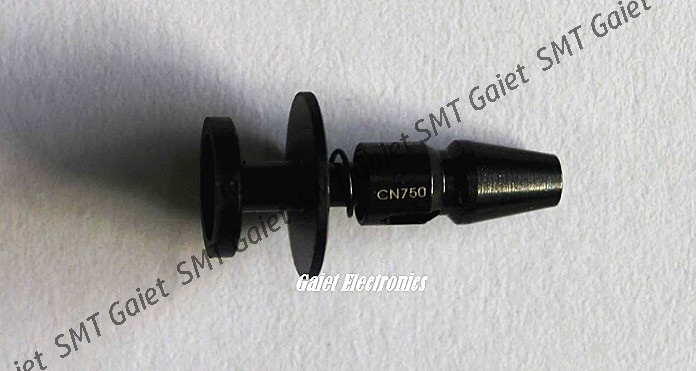

J9055259A J9055142B CP45 NEO PICK UP NOZZLE – Ø9.0/Ø7.5 (CN750) (Disk ø13.4)
J9055143B CP45 NEO PICK UP NOZZLE – Ø12.7/Ø11 (CN1100) (Disk ø15.6)



J9055133B

J9055134B

J9055135B

J9055138B

J9055139B

J9055258A

J9055218A













SMT CP60 SAMSUNG NOZZLE

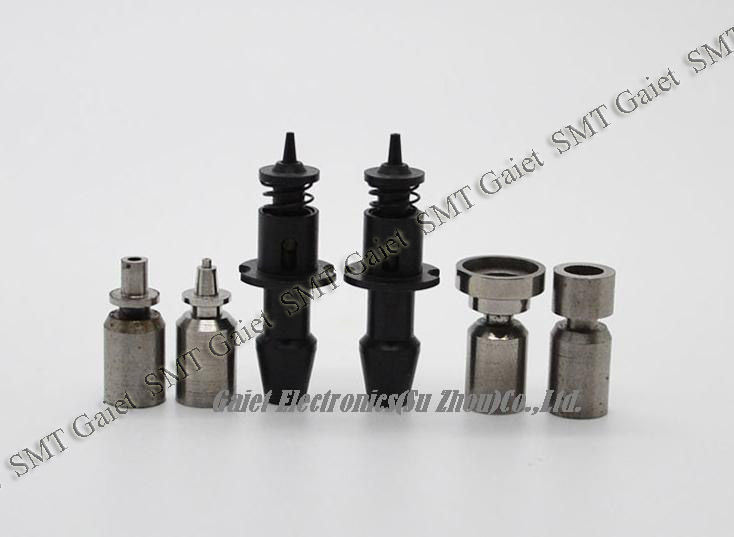

CP60



Part Number
Description
J9055069B
CP60 PICK UP NOZZLE – Ø0.8/Ø0.3 (TN030)
J9055070B
CP45 NEO PICK UP NOZZLE – Ø0.75/Ø0.38 (TN045)
J9055071B
CP45 NEO PICK UP NOZZLE – Ø1.2/Ø0.65 (TN070)
J9055072C
CP45 NEO PICK UP NOZZLE – Ø2.2/Ø1.4 (TN140)
J9055073C
CP45 NEO PICK UP NOZZLE – Ø3.6/Ø2.2 (TN220)
J9055074C
CP45 NEO PICK UP NOZZLE – Ø6.2/Ø4.0 (TN400)







SMT CP20/40 SAMSUNG NOZZLE







Part Number
Description
SAM-N045
SAMSUNG PICK UP NOZZLE Ø 1.0 / Ø 0.45 (BLACKEN)
SAM-N08
SAMSUNG PICK UP NOZZLE Ø 1.5 / Ø 0.8 (BLACKEN)
SAM-N14
SAMSUNG PICK UP NOZZLE Ø 2.7 / Ø 1.4 (BLACKEN)
SAM-N24
SAMSUNG PICK UP NOZZLE Ø 4.0 / Ø 2.4 (BLACKEN)









SMT EXCEN SAMSUNG NOZZLE

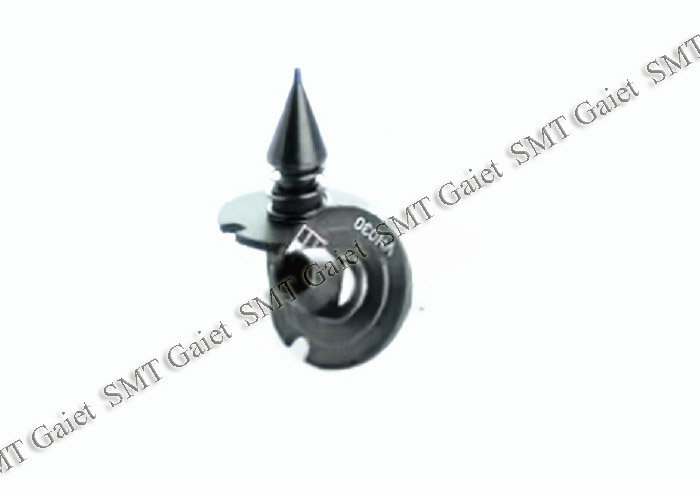

Samsung Excen Nozzle





VN020 NOZZLE

VN030 NOZZLE

VN040 NOZZLE

VN065S NOZZLE



VN140 NOZZLE

VN220 NOZZLE

VN400 NOZZLE





Part Number Description
AM03-000152A SAMSUNG EXCEN VN020 NOZZLE SIZE 0.25mm*0.5mm
AM03-000153A SAMSUNG EXCEN VN030 NOZZLE SIZE 0.3mm * 0.5mm
AM03-000154A SAMSUNG EXCEN VN040 NOZZLE SIZE 0.5mm * 1mm
AM03-000071A SAMSUNG EXCEN VN065 NOZZLE SIZE 1mm * 0.65mm
VN065S SAMSUNG EXCEN VN065S NOZZLE
AM03-007248A SAMSUNG EXCEN VN080 NOZZLE SIZE 1.2mm * 2mm
AM03-000075A SAMSUNG EXCEN VN110 NOZZLE SIZE 11mm * 12.7mm
AM03-000072A SAMSUNG EXCEN VN140 NOZZLE SIZE 1.4mm * 2.2mm
AM03-000073A SAMSUNG EXCEN VN220 NOZZLE SIZE 2.2mm * 3.6mm
AM03-000156A SAMSUNG EXCEN VN400 NOZZLE 4mm *  6mm
AM03-000074A SAMSUNG EXCEN VN750 NOZZLE 7.5mm * 9mm























  •

  •

  •

  •
