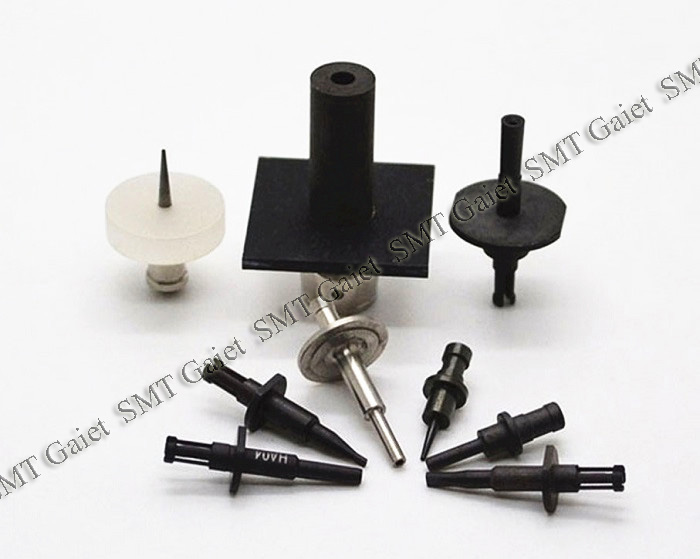

HITACHI SMT NOZZLE







We manufacture Hitachi nozzle such as HV01, HV02, HV03,HV04,HV05, HV31, HV51, HV81, HV81C, HA01, HA04, HA05, HA09, HA10, HG31, HG51/ HG52, HG81/HG82, PV01, PV02, FA04, FA05, FA06, FF01, FF02, HB03, HB04, PA05, VC76, VF01, VF02, VG35, VG51, VG52, VT32, VT69, WG51, WG52, WT32, WT51 etc. We also manufacture Hitachi custom nozzles, please let us know you need.
Hitachi nozzle are applied for Hitachi pick and place SMT machines such as Sigma F8 Σ-F8 ,Sigma G5, Sigma G5s, Σ-G5, GXH-1S, GXH-1, GXH-3 and so on.







HITACHI NOZZLE









HITACHI GXH SMT NOZZLE

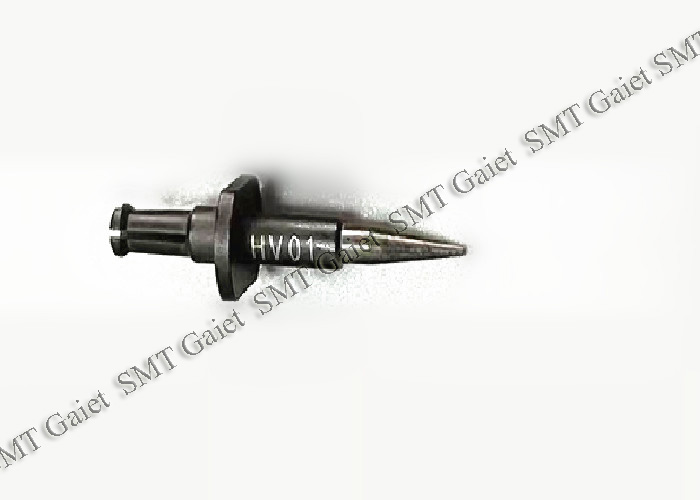

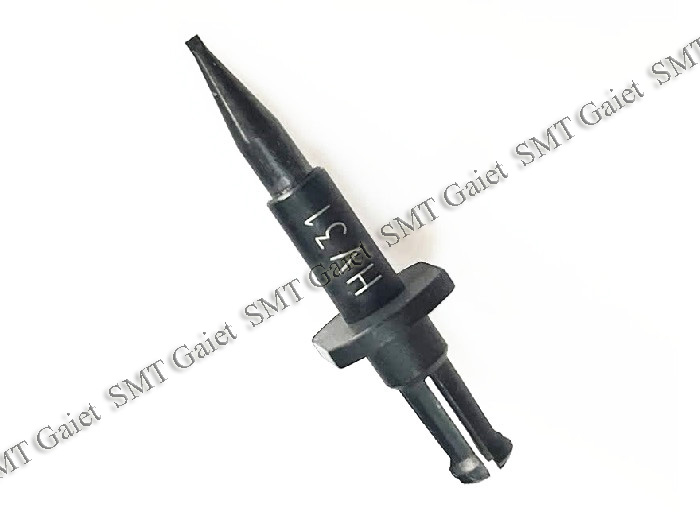

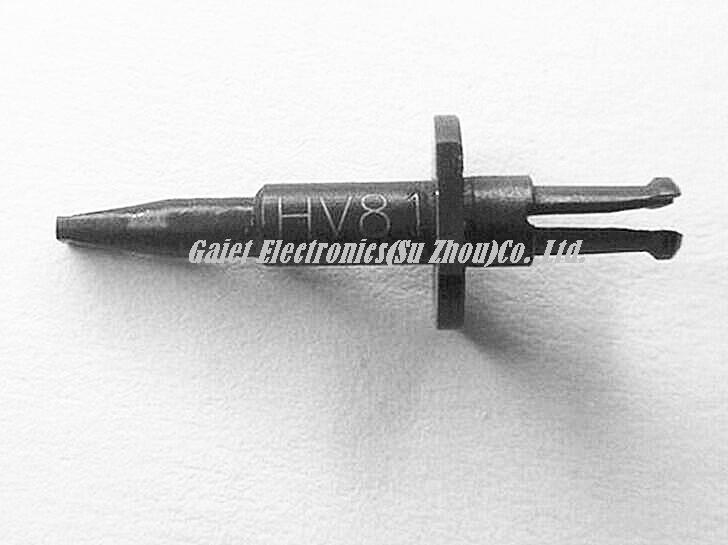

Hitachi Nozzle GXH HV01

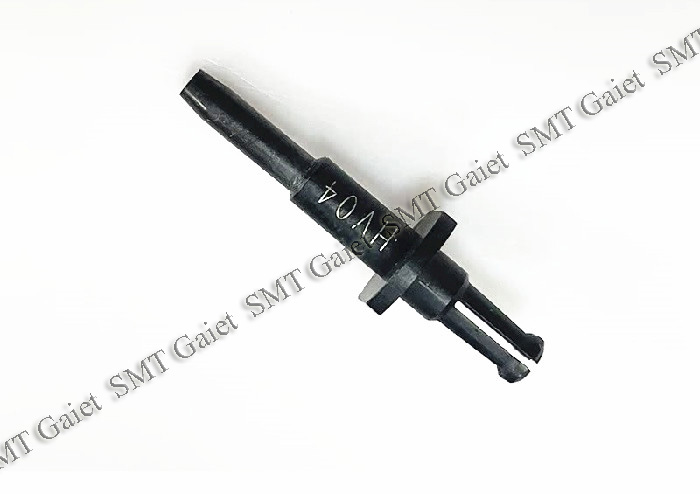

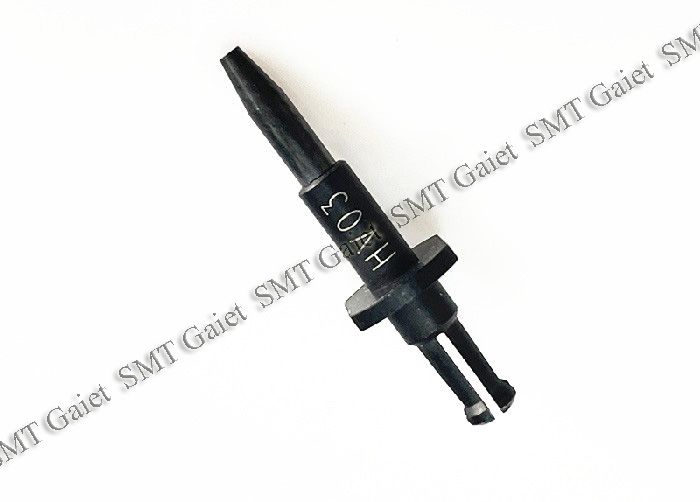

 Hitachi Nozzle GXH HV03 Hitachi Nozzle GXH HV04

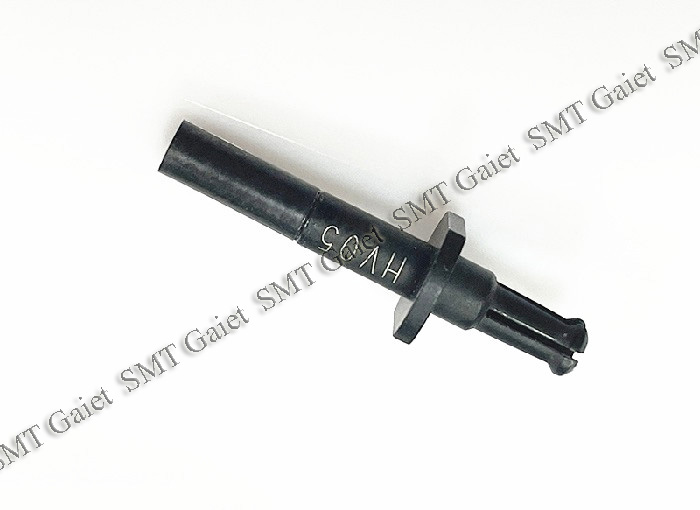

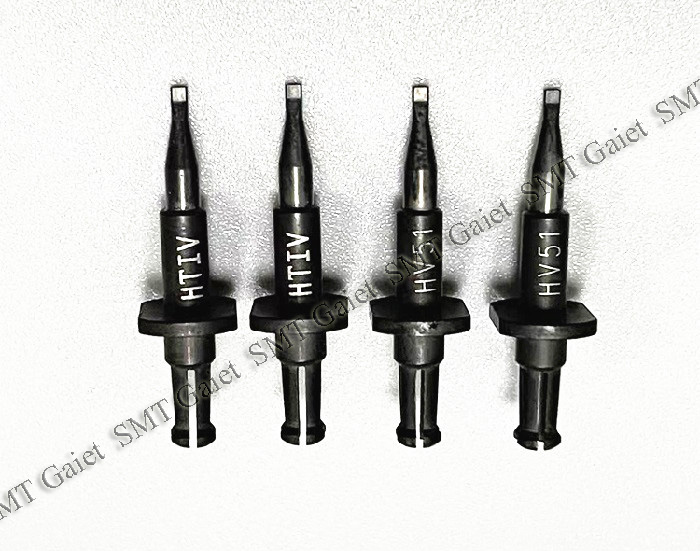

Hitachi Nozzle GXH HV05 Hitachi Nozzle GXH HV31 Hitachi Nozzle GXH HV51 Hitachi Nozzle GXH HV81

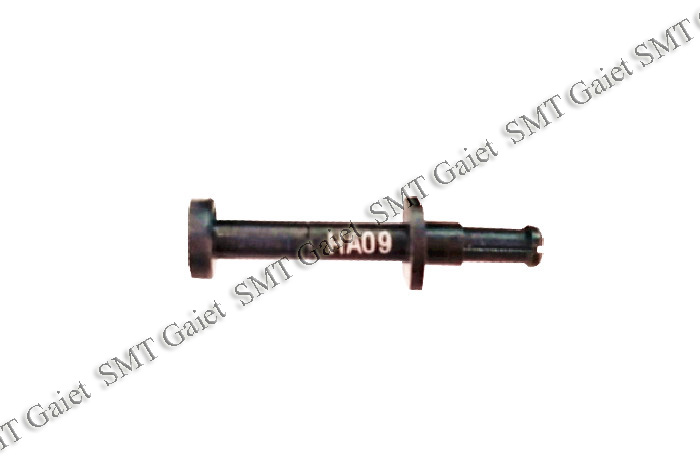

Hitachi Nozzle GXH HA01 Hitachi Nozzle GXH HA04 Hitachi Nozzle GXH HA05 Hitachi Nozzle GXH HA09

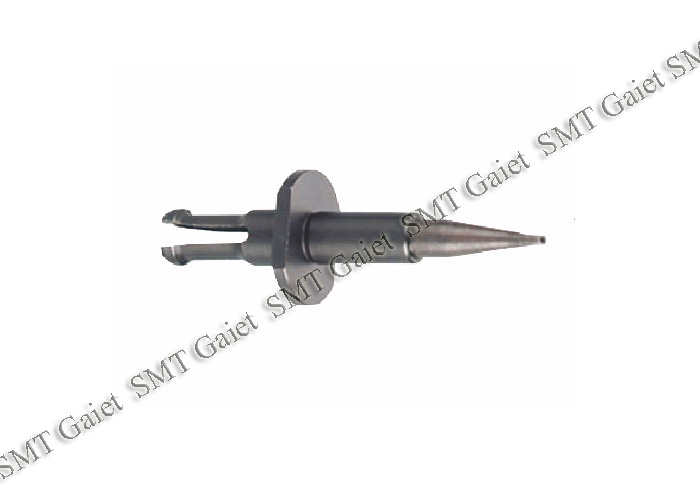

Hitachi Nozzle GXH HA10 Hitachi Nozzle GXH HG31 Hitachi Nozzle GXH HG51/HG52 Hitachi Nozzle GXH HG81/HG82

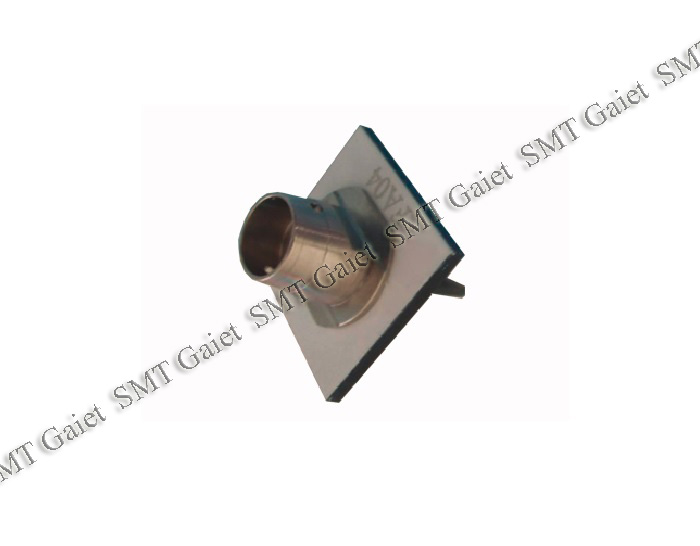

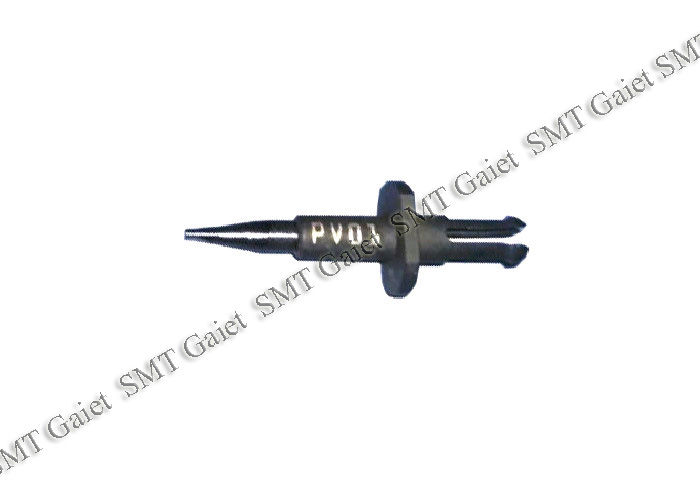

Hitachi Nozzle GXH PV01 Hitachi Nozzle GXH PV02 Hitachi Nozzle GXH FA04 Hitachi Nozzle GXH FA05

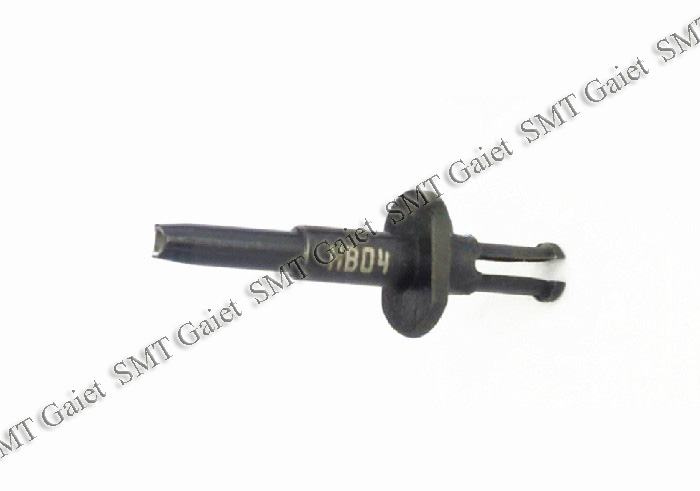

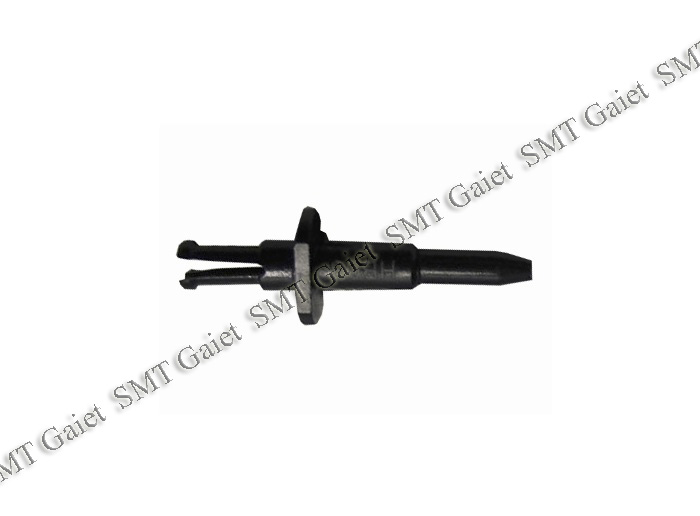

Hitachi Nozzle GXH FA06 Hitachi Nozzle GXH HB03 Hitachi Nozzle GXH HB04 Hitachi Nozzle GXH VF01

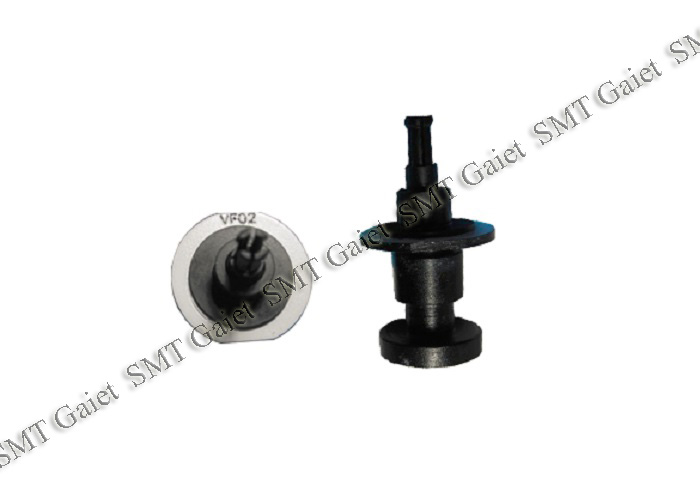

Hitachi Nozzle GXH VF02









Part Number Description Model

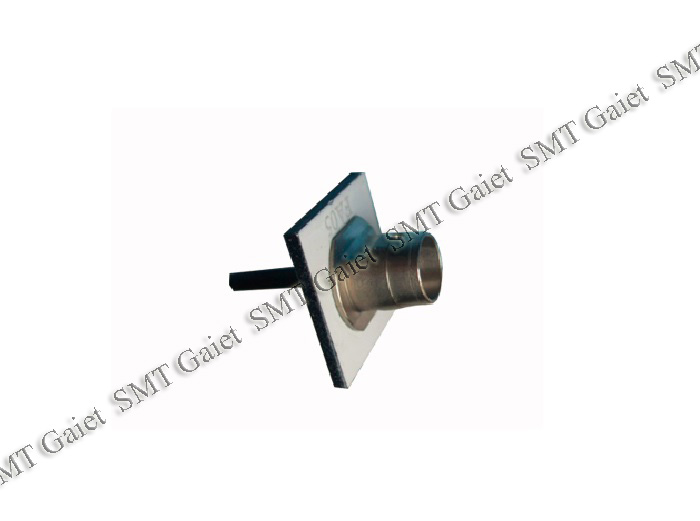

630 132 9260 FA05 ø3.0/ø2.0 Pad GXH

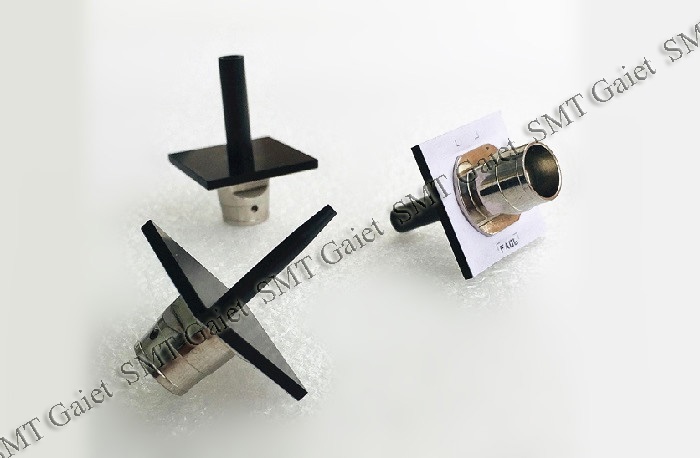

630 132 9277 FA06 ø5.0/ø3.0 Pad GXH

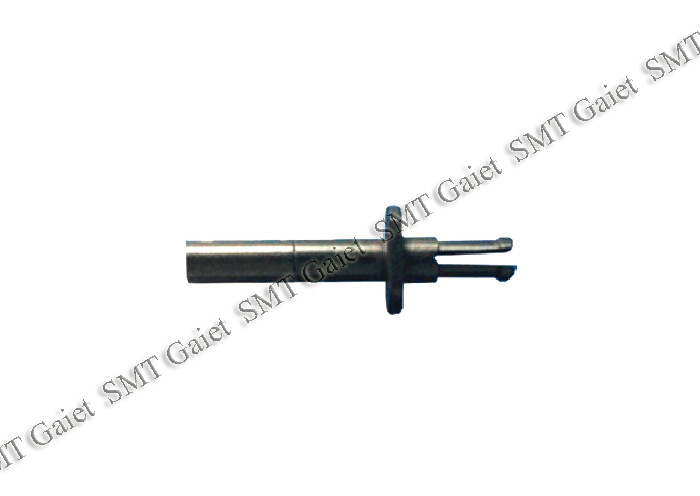

630 128 4842 (#101) HA01 0.7x0.4/ø0.25 (for 0603) GXH

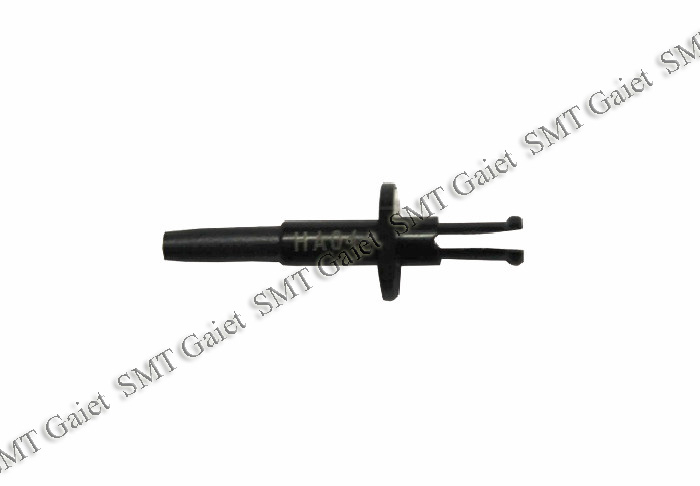

630 129 2922 HA04 ø1.8/ø1.2 (for 3216) GXH

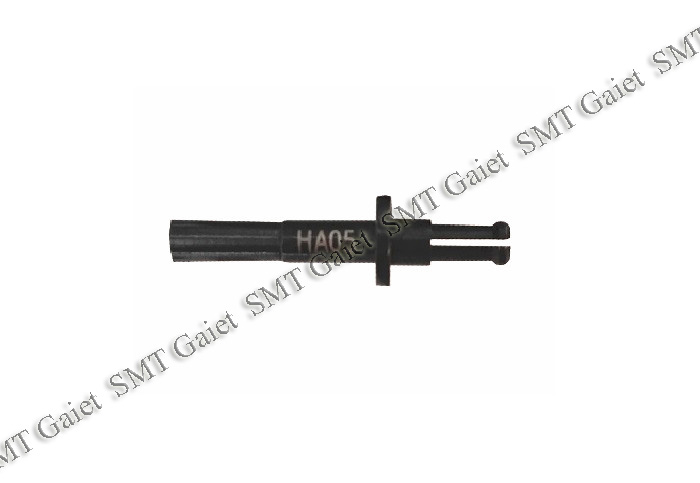

630 129 2939 (#108) HA05 ø3.0/ø2.0 GXH
630 129 2946 HA09 ø6.0/ø4.5 GXH
630 128 4842 HA10 ø0.7x0.4/ø0.2 GXH
630 129 2908 HB03 Melf ø1.3/ø0.9 GXH
630 129 2915 HB04 Melf ø1.8/ø1.1 GXH
630 158 6571 HG31 ø0.7x0.4/ø0.2 GXH
630 159 9632 HG51 ø0.6/ø0.4 GXH
630 161 3501 HG81 ø1.7x0.9/ø0.7 GXH
630 129 2878 HV01 ø0.6/ø0.4 GXH

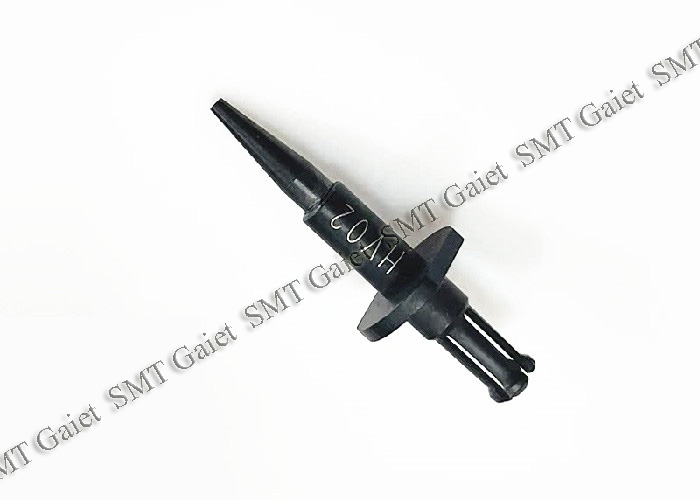

630 129 2885 HV02 ø0.9/ø0.7 GXH
630 129 2892 (#104) HV03 ø1.3/ø0.9 (for 2012) GXH
630 152 8267 HV31 ø0.7x0.4/ø0.2 GXH
630 152 8472 HV51 ø0.6/ø0.4 GXH
630 158 9084 HV81 ø1.7x0.9/ø0.7 GXH
630 133 5407 PA05 ø2.6/ø2.0 GXH
630 132 2322 (#111) PV01 1.1x0.6/ø0.38 (for 1005) GXH

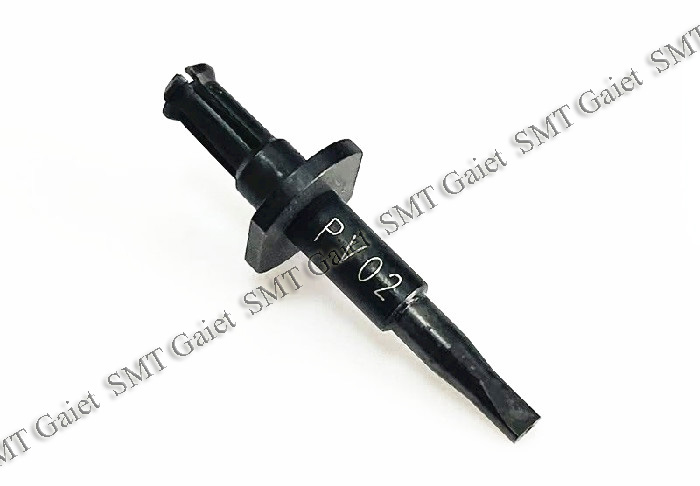

630 132 9857 (#112) PV02 1.7x0.9/ø0.65 (for 1608) GXH
630 129 8214 VF01 ø8.0/ø3.0 GXH
630 129 8252 VF02 ø12.0/ø8.0 GXH
630 130 0283 VG35 8.0x2.2 GXH
630 130 0238 VG51  GXH
630 130 7831 VG52 7.0x1.4 GXH
630 130 0245 VT32 ø12.0x1.9 GXH
630 130 8692 VT69 ø8.6 (O-ring) GXH
630 135 2060 WG51 9.0x7.0/1.4x0.6 GXH
630 133 3847 WG52 7.0x5.0/1.4x0.6 GXH
630 133 3823 WT32 ø12.0x1.9 GXH
630 130 0238 WT51 ø18.0x4.0 GXH
FA04 ø1.8/ø1.1 GXH
FF01 ø8.0/ø3.0 GXH
FF02 ø12.0/ø8.0 GXH











HITACHI SIGMA G5S SMT NOZZLE

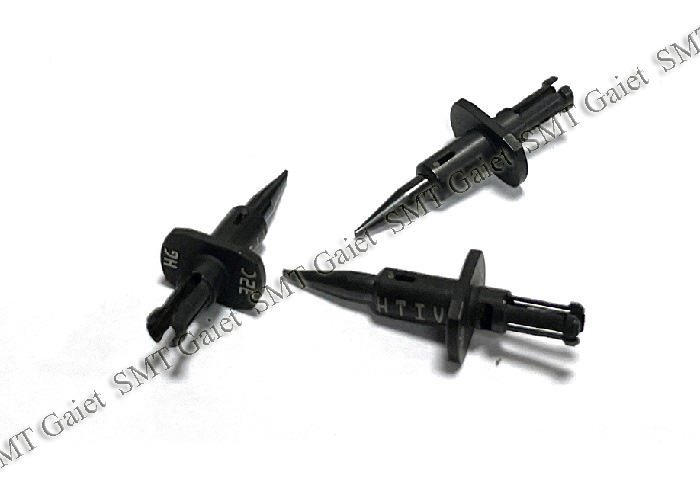

Hitachi Nozzle G5S HG32C

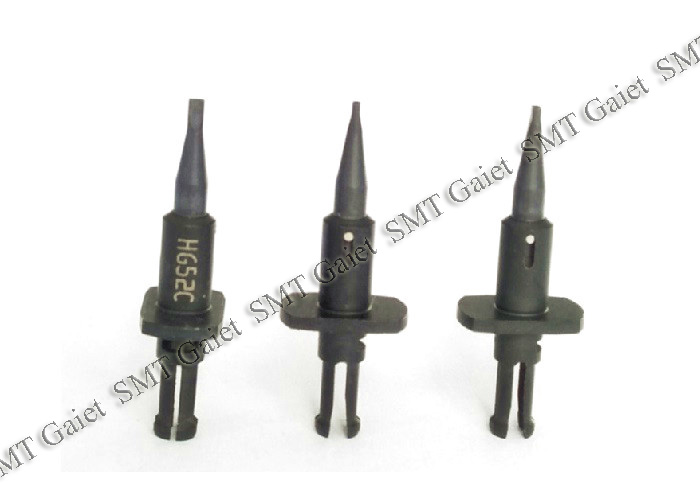

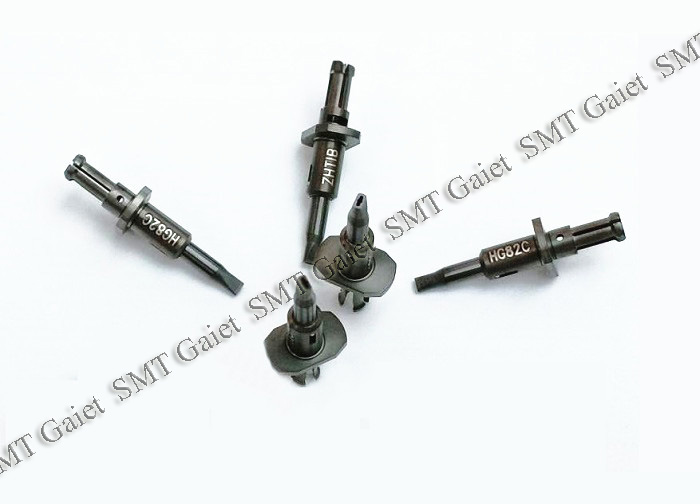

 Hitachi Nozzle G5S HG52C Hitachi Nozzle G5S HG82C

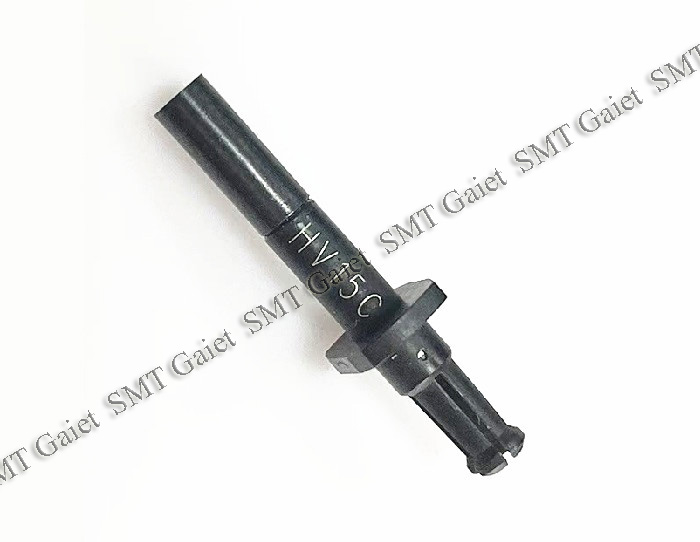

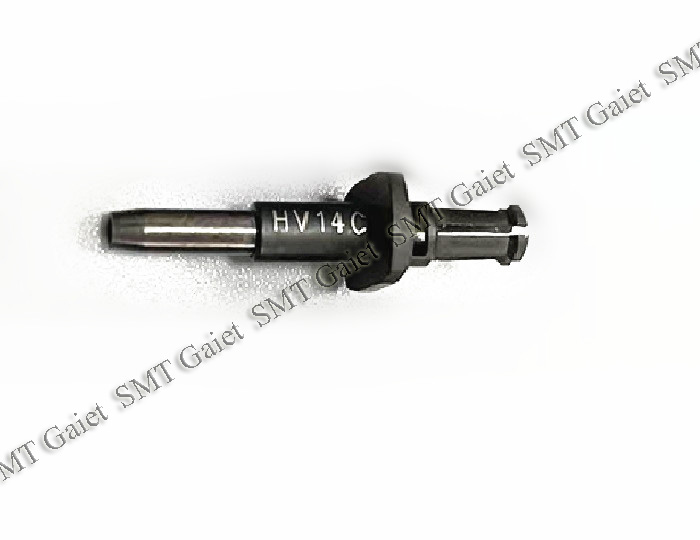

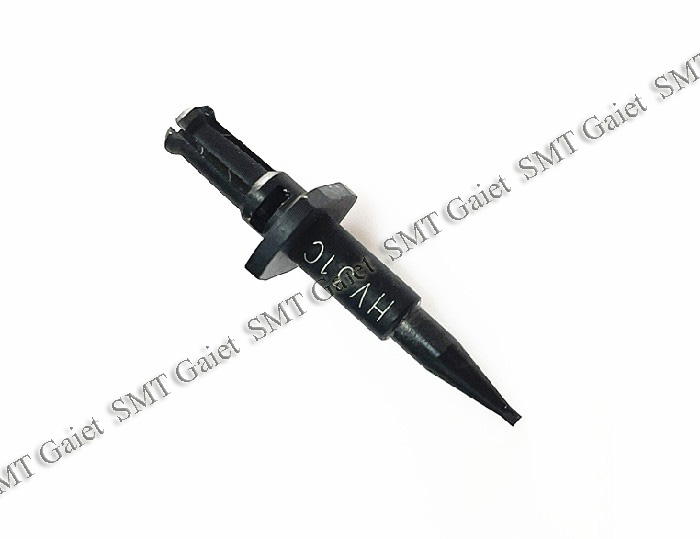

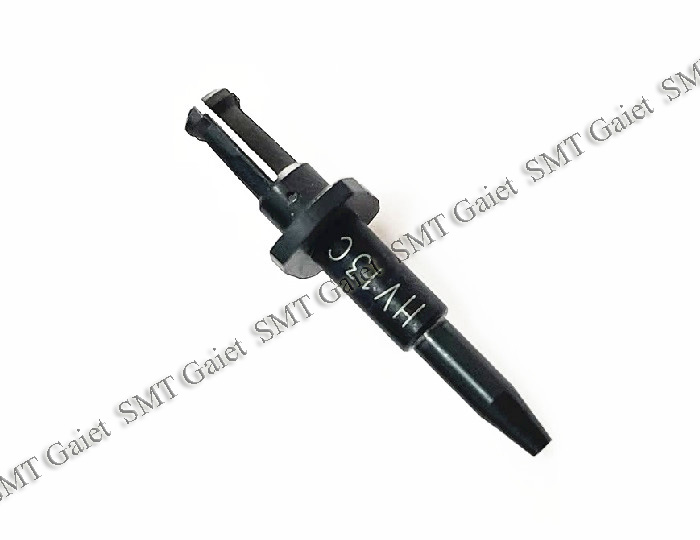

Hitachi Nozzle G5S HV13C Hitachi Nozzle G5S HV14C Hitachi Nozzle G5S HV15C Hitachi Nozzle G5S HV31C

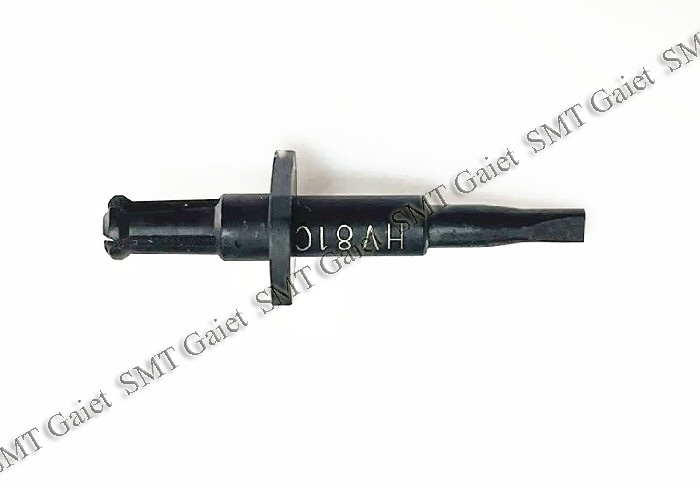

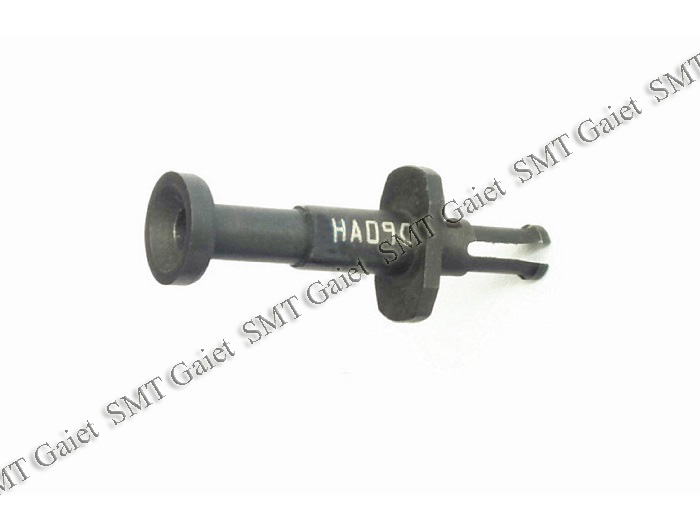

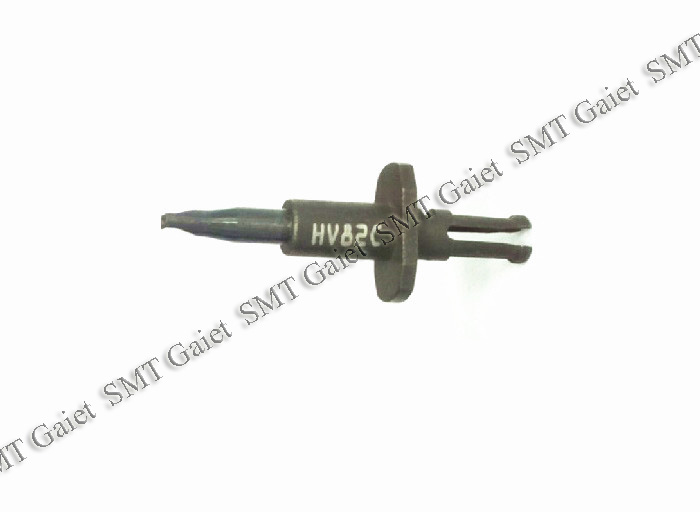

Hitachi Nozzle G5S HV81C Hitachi Nozzle G5S HV82C Hitachi Nozzle G5S HA09C









PART NO. Part Name
G5S HG13C Hitachi SIGMA G5S Nozzle
G5S HG14C Hitachi SIGMA G5S Nozzle
G5S HG15C Hitachi SIGMA G5S Nozzle
G5S HG31C Hitachi SIGMA G5S Nozzle
G5S HG32C Hitachi SIGMA G5S Nozzle
G5S HG33C Hitachi SIGMA G5S Nozzle
G5S HG52C Hitachi SIGMA G5S Nozzle
G5S HG82C Hitachi SIGMA G5S Nozzle
G5S HV01C Hitachi SIGMA G5S Nozzle
G5S HV03C Hitachi SIGMA G5S Nozzle
G5S HV13C Hitachi SIGMA G5S Nozzle
G5S HV14C Hitachi SIGMA G5S Nozzle
G5S HV15C Hitachi SIGMA G5S Nozzle
G5S HV31C Hitachi SIGMA G5S Nozzle
G5S HV51C Hitachi SIGMA G5S Nozzle
G5S HV81C Hitachi SIGMA G5S Nozzle
G5S HV82C Hitachi SIGMA G5S Nozzle
G5S HA04C Hitachi SIGMA G5S Nozzle
G5S HA05C Hitachi SIGMA G5S Nozzle
G5S HA09C Hitachi SIGMA G5S Nozzle









  •

  •

  •

  •
